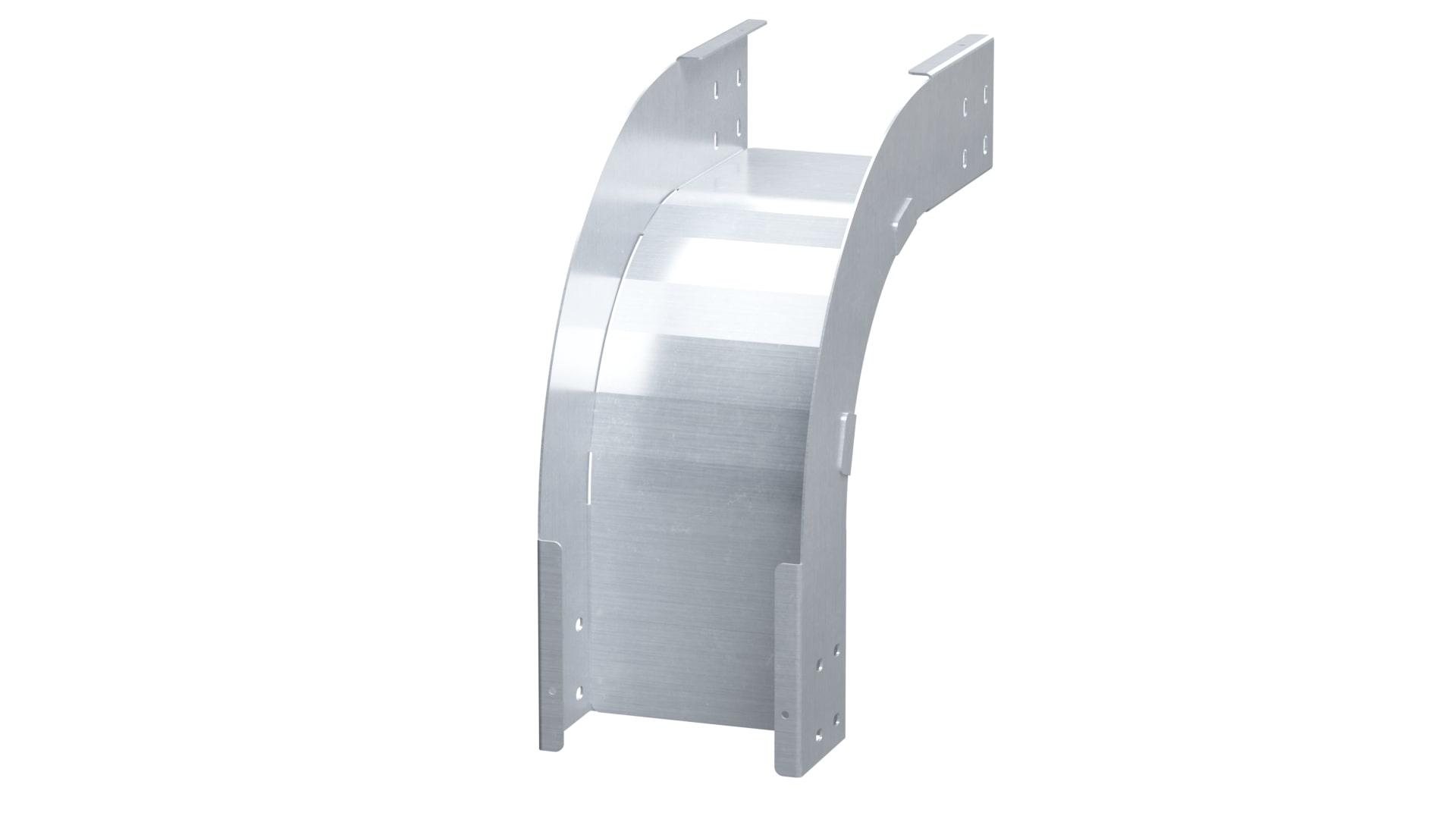

CD 90 external vertical angle 50x150, 2,0 mm, ZL, included with fasteners (joint plates GTO, screws, nuts)

Code: SOH515KZL
CD 90 external vertical angle 50x150, 2,0 mm, ZL, included with fasteners (joint plates GTO, screws, nuts)
CD 90 external vertical angle 50x150, 2,0 mm, ZL, included with fasteners (joint plates GTO, screws, nuts)
Code: SOH515KZL
  • To ask a question
  • Characteristics
  • Accessories
  • The accompanying goods
  • Promo
  • Viewed items

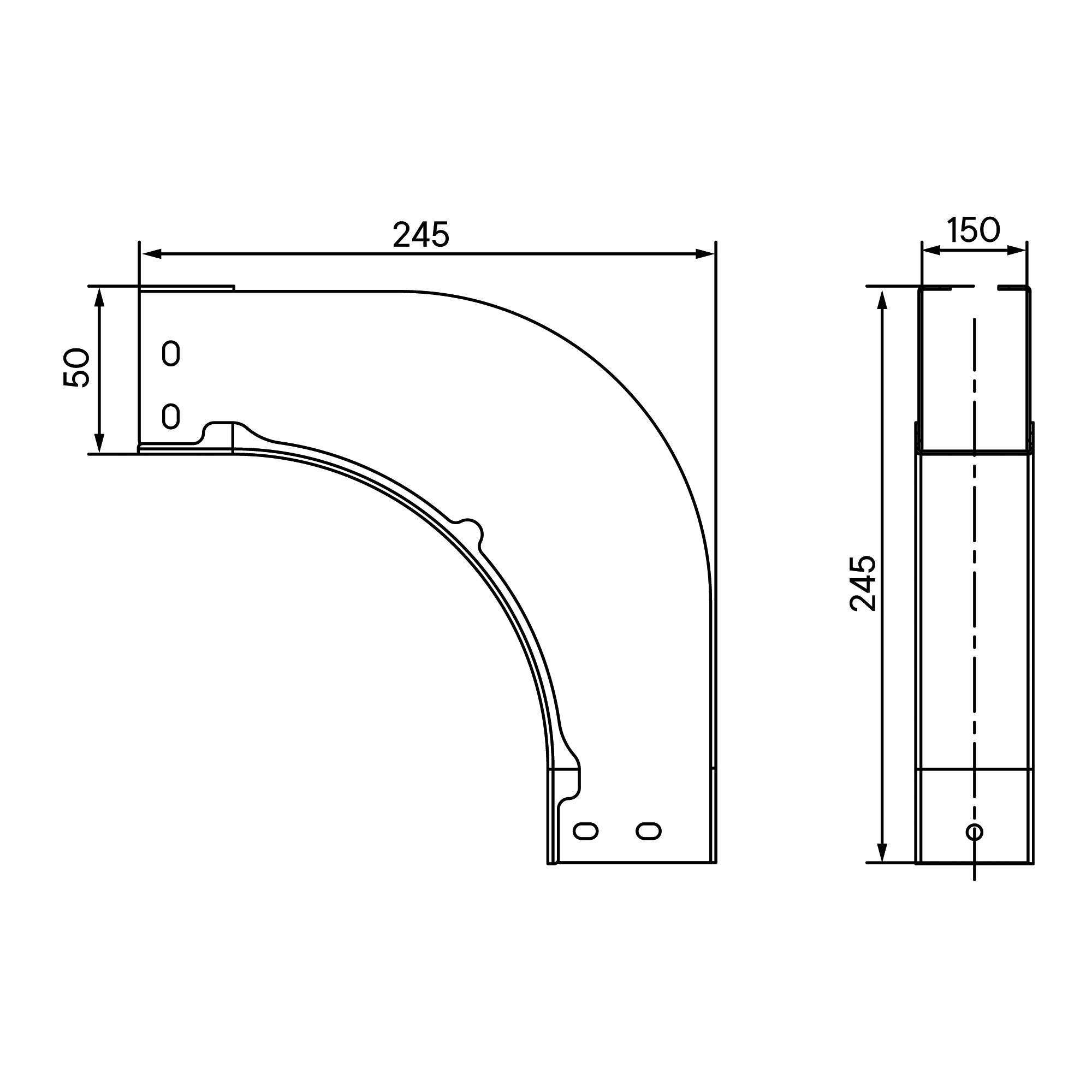

Model Included connector
Material thickness, mm 2
Deflection (angle) 90°
Material quality Steel
Material Steel
Cable tray width, mm 150
Cable tray height, mm 50
NATO-mounting holes No
Surface protection Continuously galvanized zinc-aluminium
Stainless steel, pickled No
Wide span model No
Suitable for circuit integrity No
Product type System accessories
Type of accessories 90º vertical external bend
Width 150 mm
Height 50 mm
Material Zinc-lamellated steel
