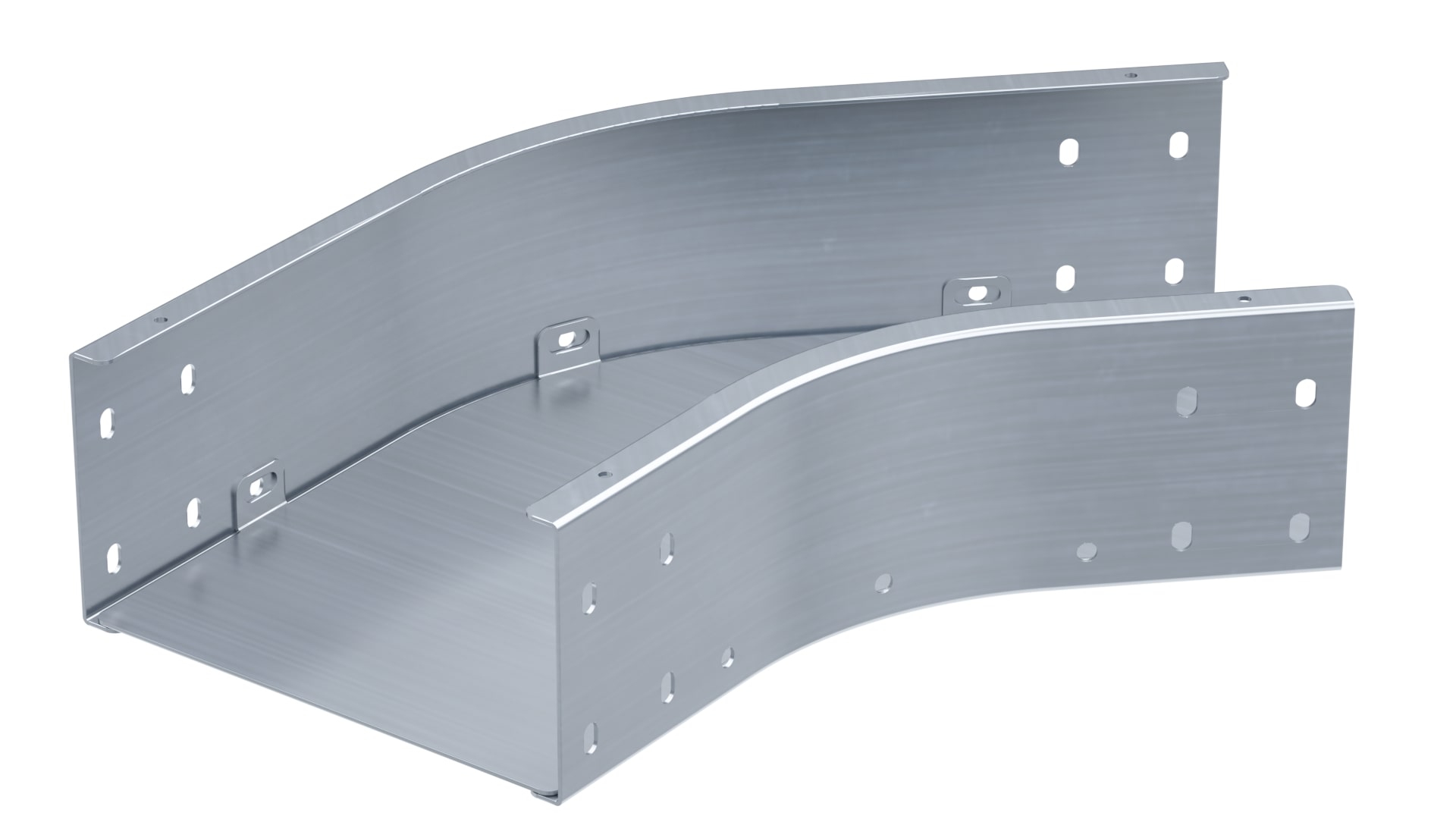

CPO 45 horizontal angle 100x100, 1,5 mm, ZL included with fasteners (joint plates GTO, screws, nuts)
Code: SCM1010KZL
CPO 45 horizontal angle 100x100, 1,5 mm, ZL included with fasteners (joint plates GTO, screws, nuts)
Code: SCM1010KZL
| Colour | Light grey |
| Model | Included connector |
| Material thickness, mm | 1.5 |
| Deflection (angle) | 45° |
| Material quality | Steel |
| Material | Steel |
| Cable tray width, mm | 100 |
| Cable tray height, mm | 100 |
| NATO-mounting holes | Yes |
| Surface protection | Zinc lamellar coating |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| Change of direction | Horizontal |
| Product type | System accessories |
| Type of accessories | 45º Horizontal bend |
| Height | 100 mm |
| Thickness | 1.5 mm |
| Material | Zinc-lamellated steel |
| Width | 100 mm |
