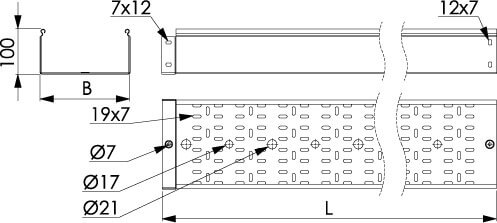

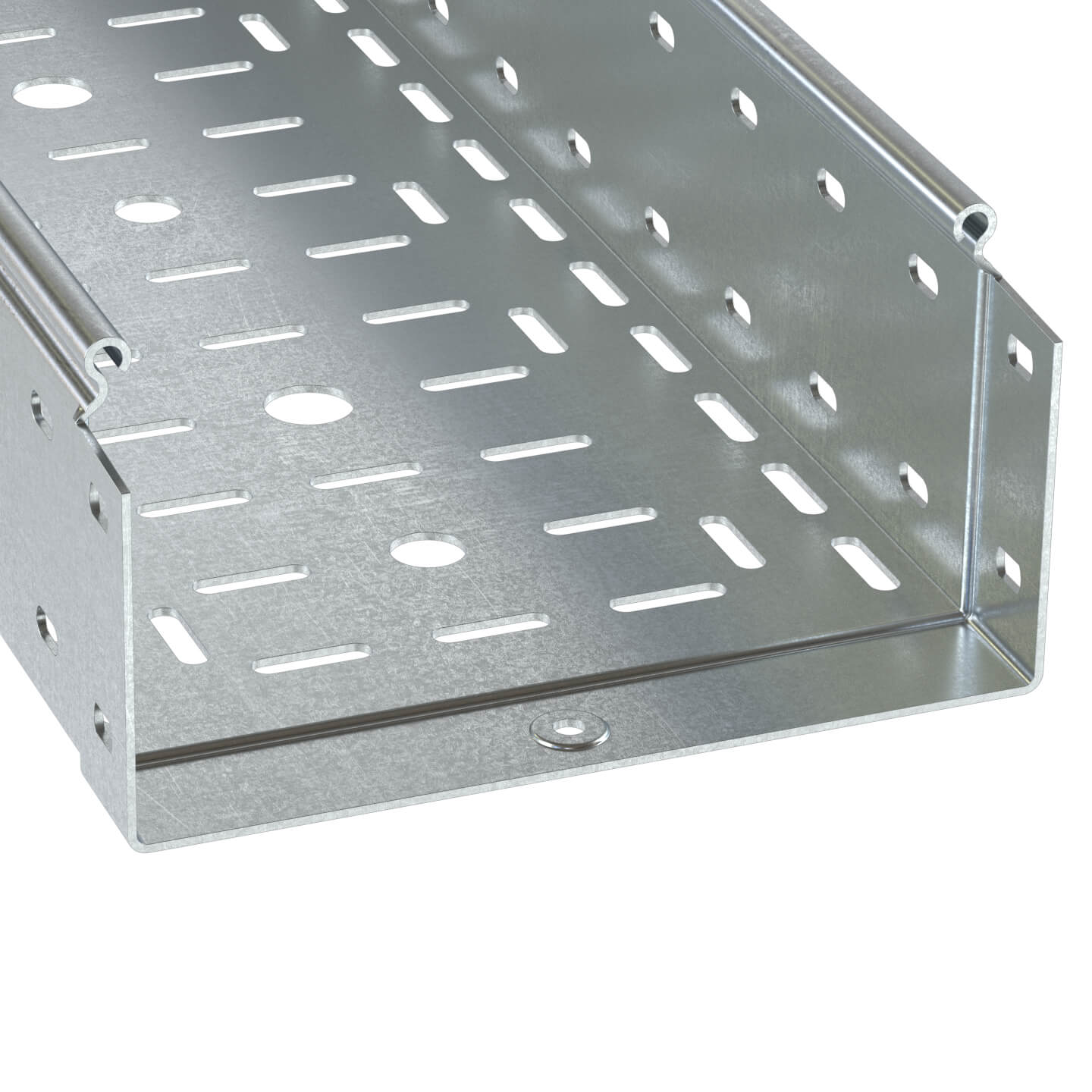

Perforated Straight Element 100х100 L3000 thick.1,2 mm, HDZ
Code: 3534112HDZ
Perforated Straight Element 100х100 L3000 thick.1,2 mm, HDZ
Code: 3534112HDZ
| Colour | Light grey |
| Width, mm | 100 |
| Model | Without connector |
| Height, mm | 100 |
| Surface protection | Hot-dip galvanized |
| Material thickness, mm | 1.2 |
| Side wall perforation | Yes |
| Material quality | Steel |
| Length, mm | 3000 |
| Material | Steel |
| Mounting perforation in bottom | Yes |
| Useful cross section, mm² | 9800 |
| Suitable for circuit integrity | Yes |
| Product type | Perforated straight elements |
| Type | Metal sheet trays - " S5 Combitech" |
| Height | 100 mm |
| Length | 3000 mm |
| Thickness | 1.2 mm |
| Material | Hot-dip galvanized |
| Width | 100 mm |
