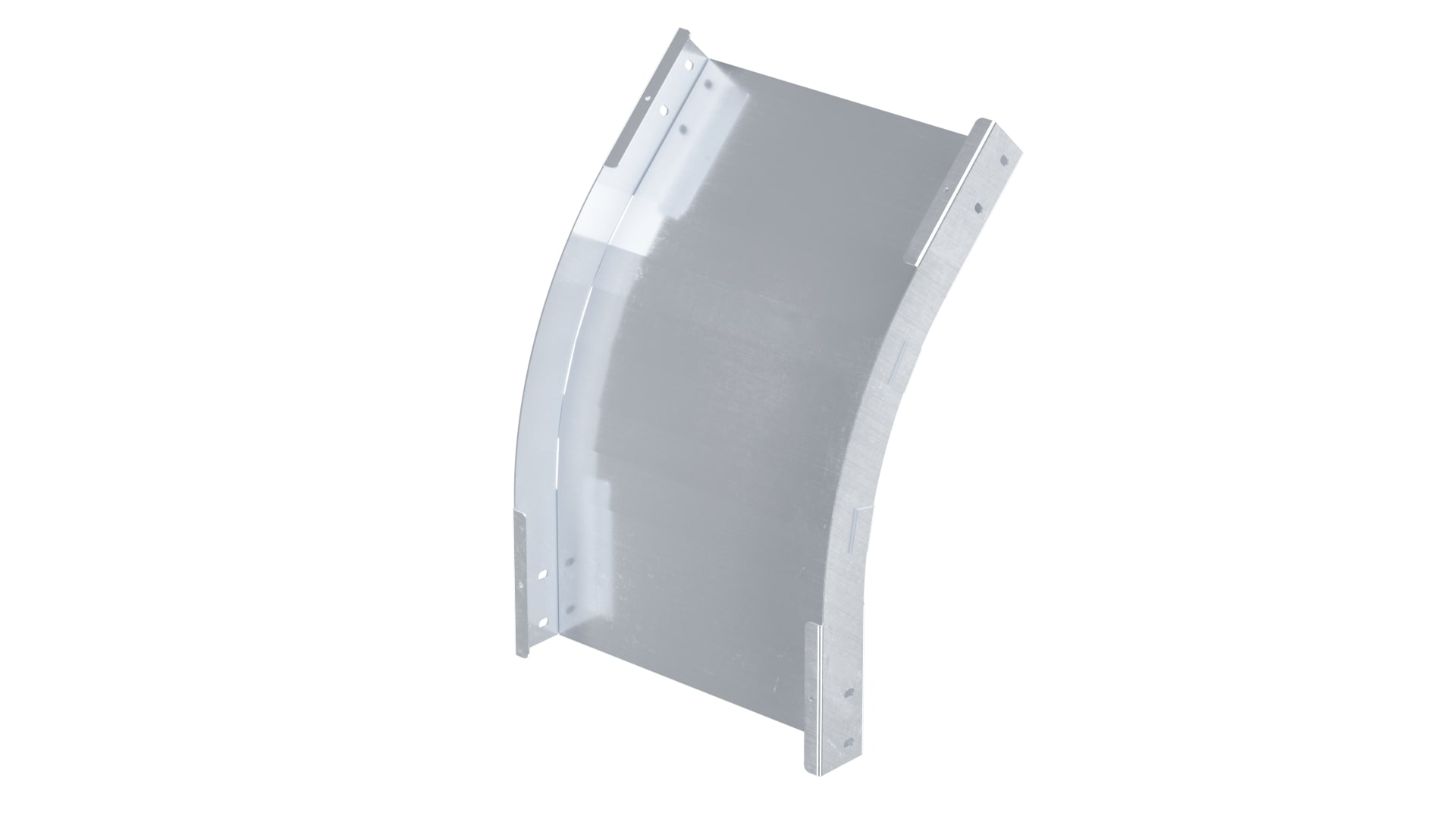

CD 45 external vertical angle 80x400, 1,5 mm,HDZ, included with fasteners (joint plates GTO, screws, nuts)
Code:
SPM840KHDZ
Code:
SPM840KHDZ
| Model | Included connector |
| Material thickness, mm | 1.5 |
| Deflection (angle) | 45° |
| Material quality | Steel |
| Material | Steel |
| Cable tray width, mm | 400 |
| Cable tray height, mm | 80 |
| Surface protection | Hot-dip galvanized |
| Suitable for circuit integrity | Yes |
| Change of direction | Vertically declining |
| With cover | No |
| Bend model | Smooth bend |
| Product type | System accessories |
| Type of accessories | 45º vertical external bend |
| Height | 80 mm |
| Thickness | 1.5 mm |
| Material | Hot-dip galvanized |
| Width | 400 mm |
