| Model | Included connector |
| Material thickness, mm | 2 |
| Deflection (angle) | 90° |
| Material quality | Steel |
| Material | Steel |
| Cable tray width, mm | 50 |
| Cable tray height, mm | 50 |
| Surface protection | Hot-dip galvanized |
| Suitable for circuit integrity | Yes |
| Change of direction | Vertically declining |
| With cover | No |
| Bend model | Smooth bend |
| Product type | System accessories |

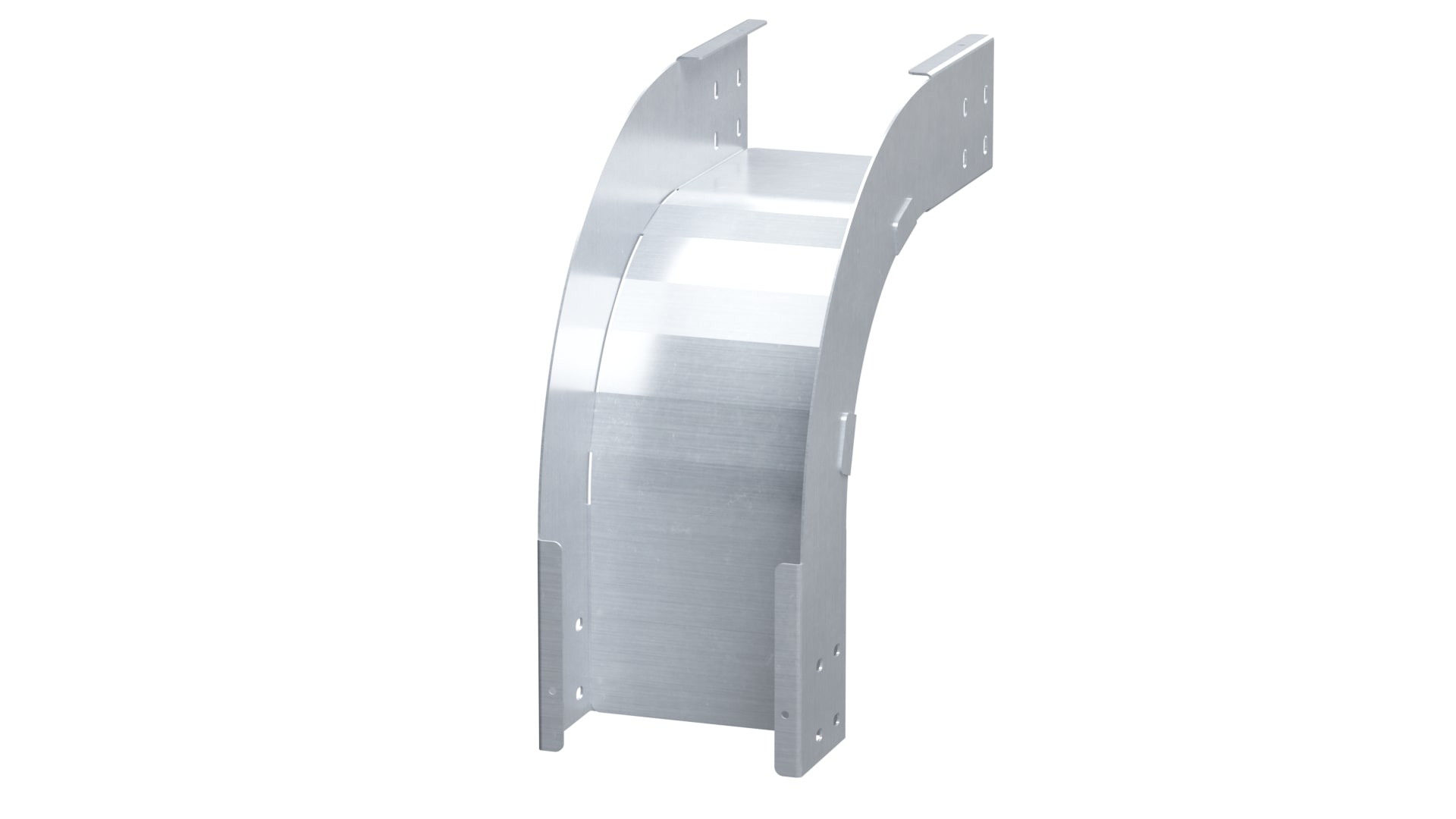

| Type of accessories | 90º vertical external bend |
| Height | 50 mm |
| Thickness | 2.0 mm |
| Material | Hot-dip galvanized |
| Width | 50 mm |
