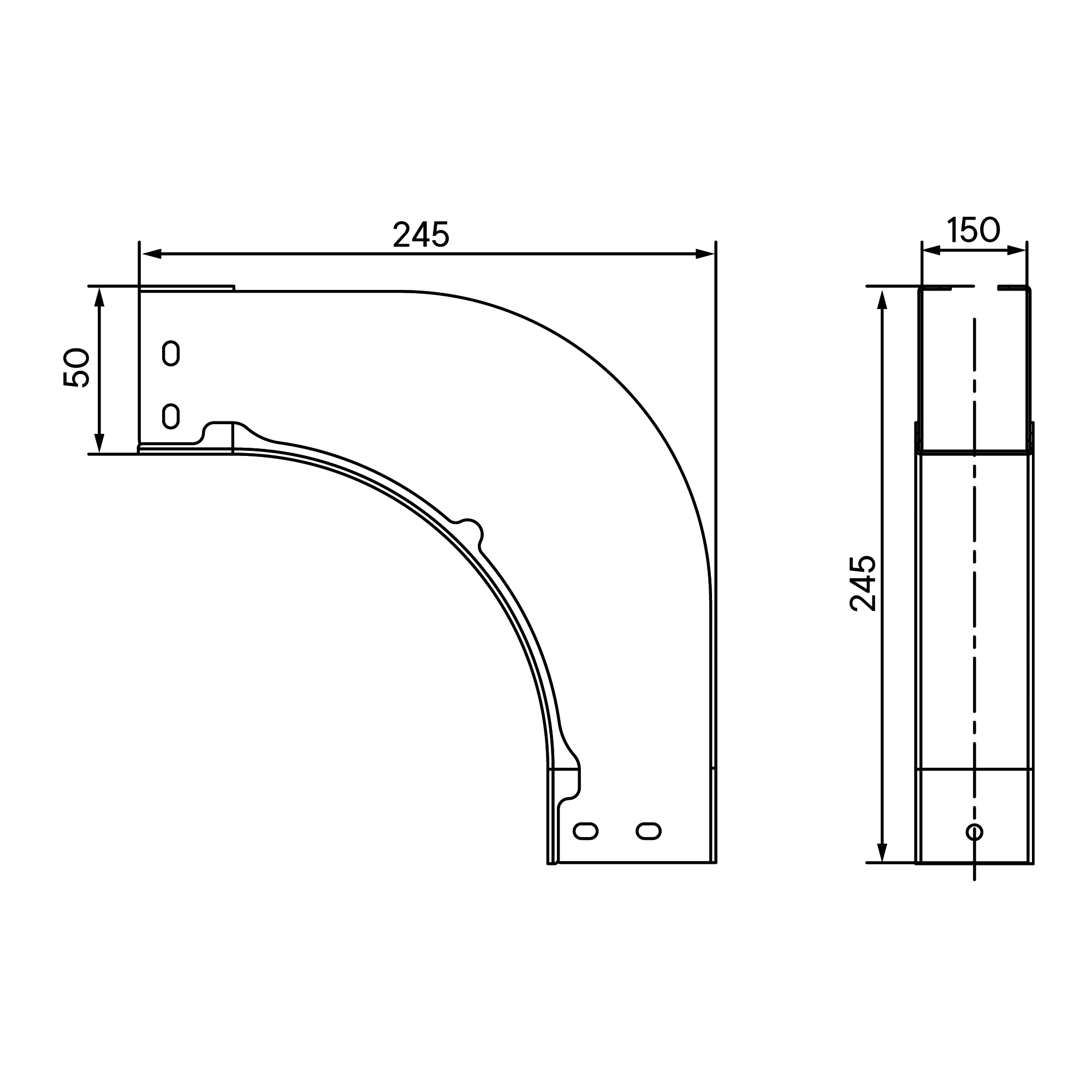

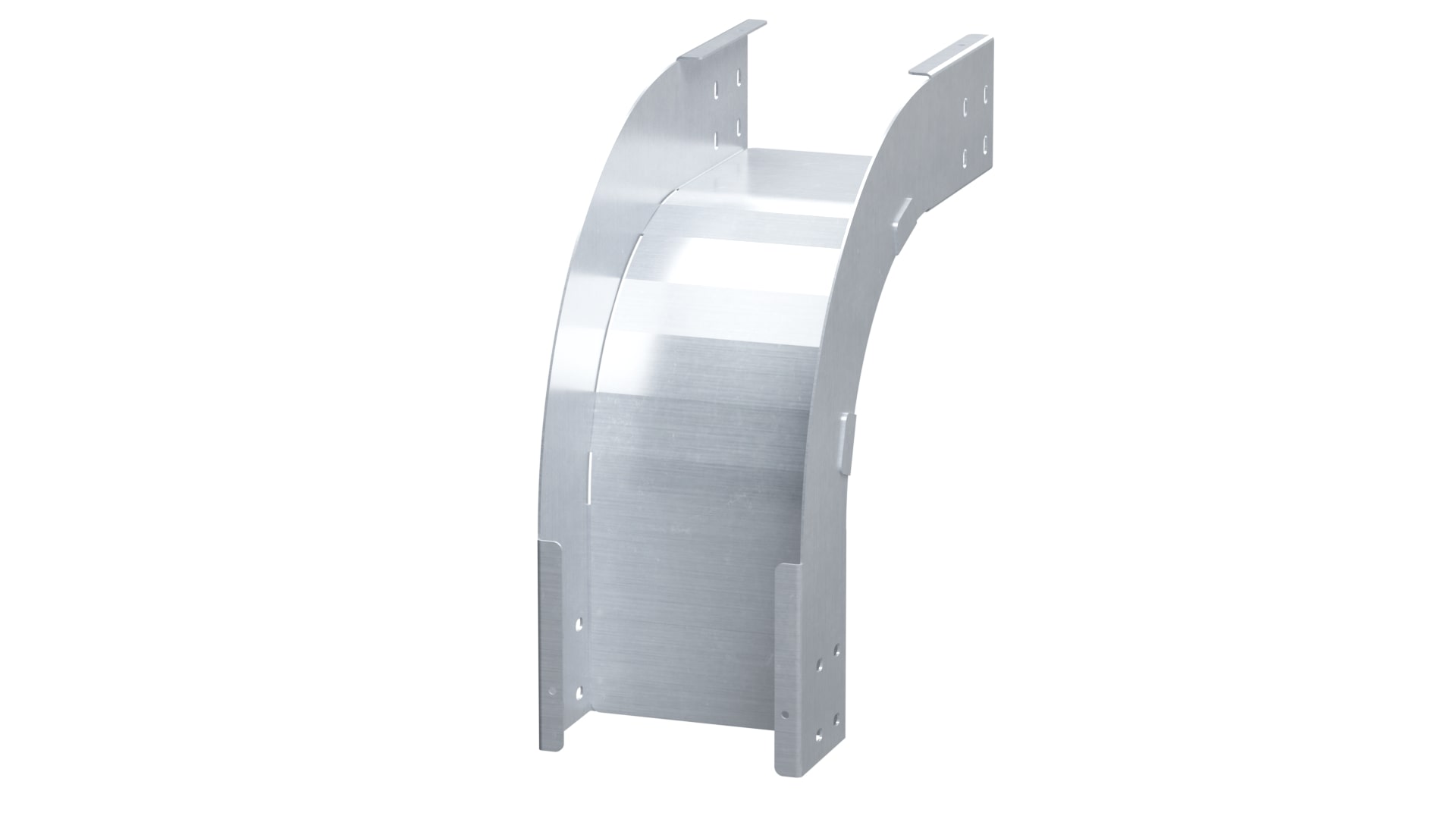

CD 90 external vertical angle 50x150, 1,2 mm,HDZ, included with fasteners (joint plates GTO, screws, nuts)
Code:
SON515KHDZ
CD 90 external vertical angle 50x150, 1,2 mm,HDZ, included with fasteners (joint plates GTO, screws, nuts)
Code:
SON515KHDZ
Colour | Light grey |
Model | Included connector |
Material thickness, mm | 1.2 |
Deflection (angle) | 90° |
Material quality | Steel |
Material | Steel |
Cable tray width, mm | 150 |
Cable tray height, mm | 50 |
Surface protection | Hot-dip galvanized |
Suitable for circuit integrity | Yes |
Change of direction | Vertically declining |
With cover | No |
Bend model | Smooth bend |
Product type | System accessories |
Type of accessories | 90º vertical external bend |
Height | 50 mm |
Thickness | 1.2 mm |
Material | Hot-dip galvanized |
Width | 150 mm |
