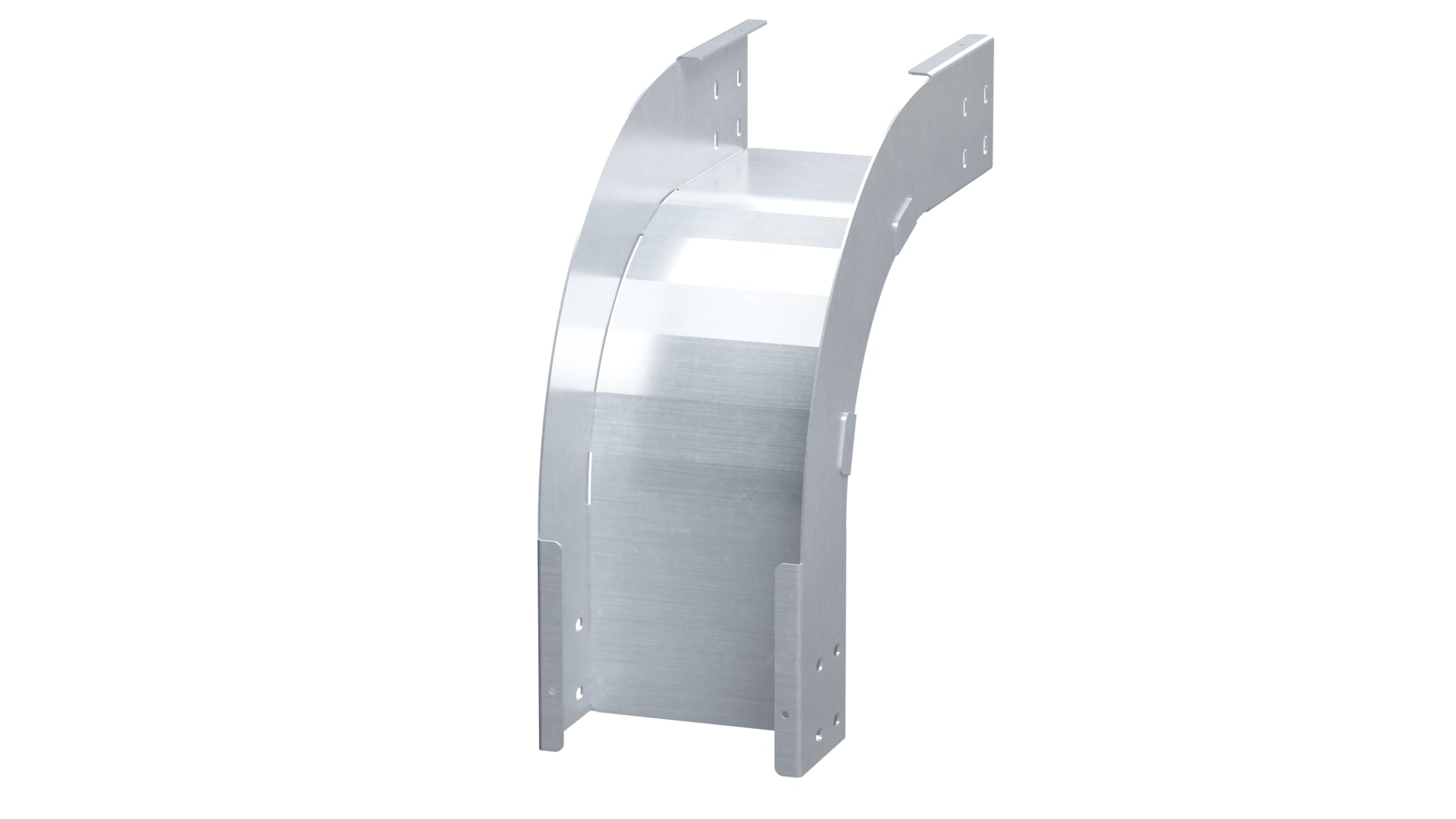

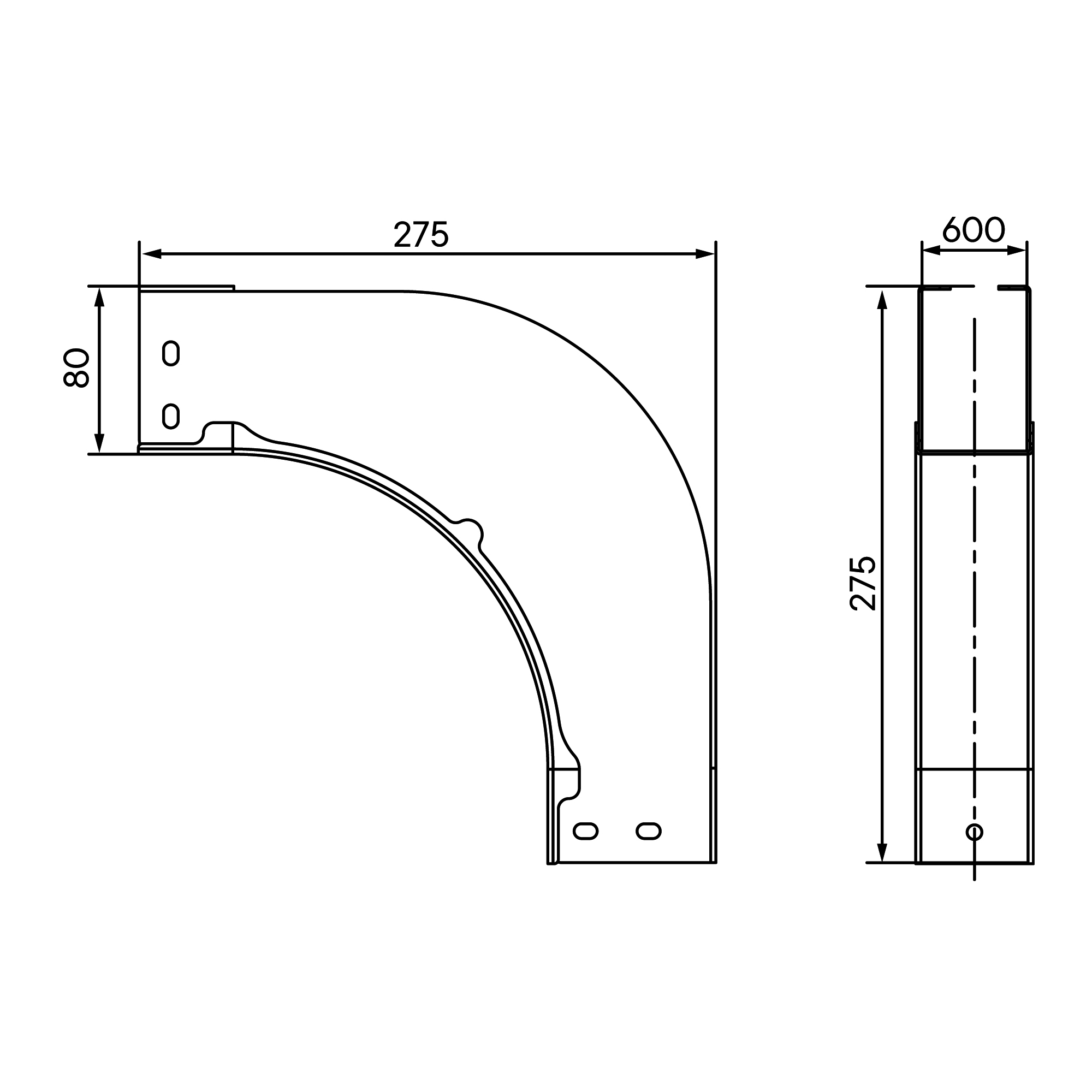

CD 90 external vertical angle 80x600, 2,0 mm,HDZ, included with fasteners (joint plates GTO, screws, nuts)

Code: SOH860KHDZ

CD 90 external vertical angle 80x600, 2,0 mm,HDZ, included with fasteners (joint plates GTO, screws, nuts)

Code: SOH860KHDZ
Colour Light grey
Model Included connector
Material thickness, mm 2
Deflection (angle) 90°
Material quality Steel
Material Steel
Cable tray width, mm 600
Cable tray height, mm 80
Surface protection Hot-dip galvanized
Suitable for circuit integrity Yes
Change of direction Vertically declining
With cover No
Bend model Smooth bend
Product type System accessories
Type of accessories 90º vertical external bend
Height 80 mm
Thickness 2.0 mm
Material Hot-dip galvanized
Width 600 mm
