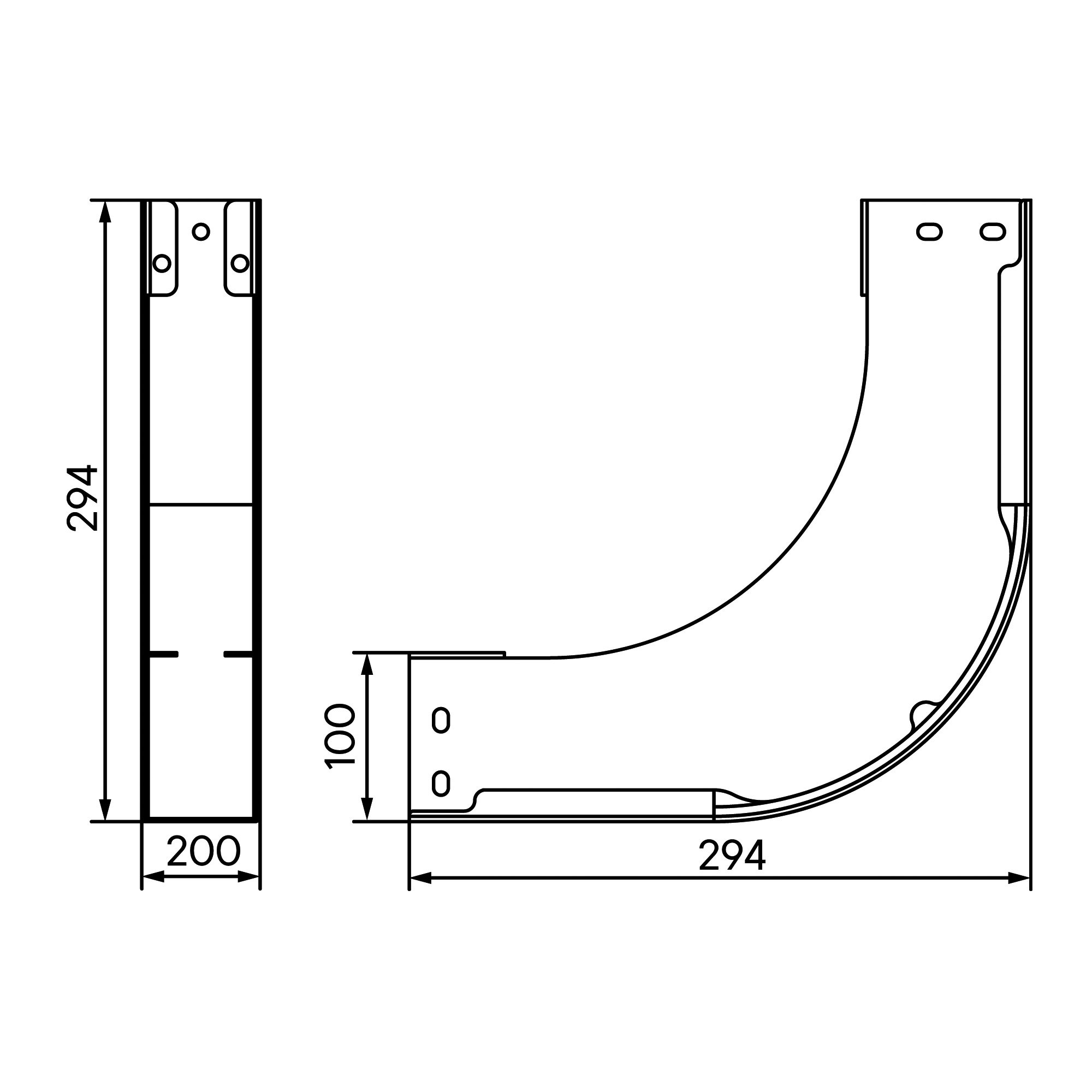

CS 90 internal vertical angle 100x200, 2,0 mm, HDZ, included with fasteners (joint plates GTO, screws, nuts)

Code: SIH1020KHDZ
CS 90 internal vertical angle 100x200, 2,0 mm, HDZ, included with fasteners (joint plates GTO, screws, nuts)
CS 90 internal vertical angle 100x200, 2,0 mm, HDZ, included with fasteners (joint plates GTO, screws, nuts)
Code: SIH1020KHDZ
  • To ask a question
  • Characteristics
  • Accessories
  • Analogs
  • The accompanying goods
  • Promo
  • Viewed items
Model Included connector
Material thickness, mm 2
Deflection (angle) 90°
Material quality Steel
Material Steel
Cable tray width, mm 200
Cable tray height, mm 100
Surface protection Hot-dip galvanized
Suitable for circuit integrity Yes
Change of direction Vertically rising
With cover No
Bend model Smooth bend
Product type System accessories
Type of accessories 90º vertical inner bend
Height 100 mm
Thickness 2.0 mm
Material Hot-dip galvanized
Width 200 mm
