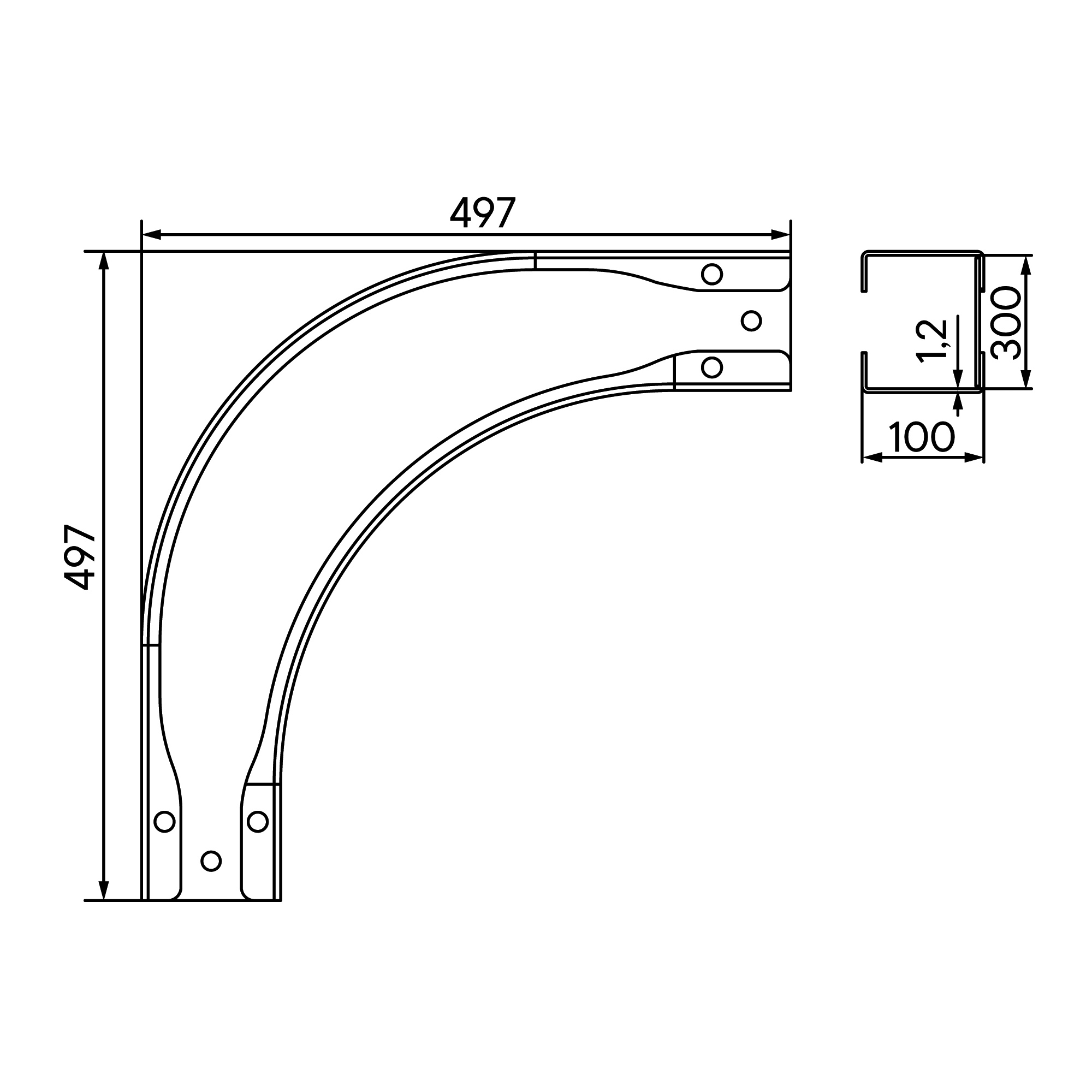

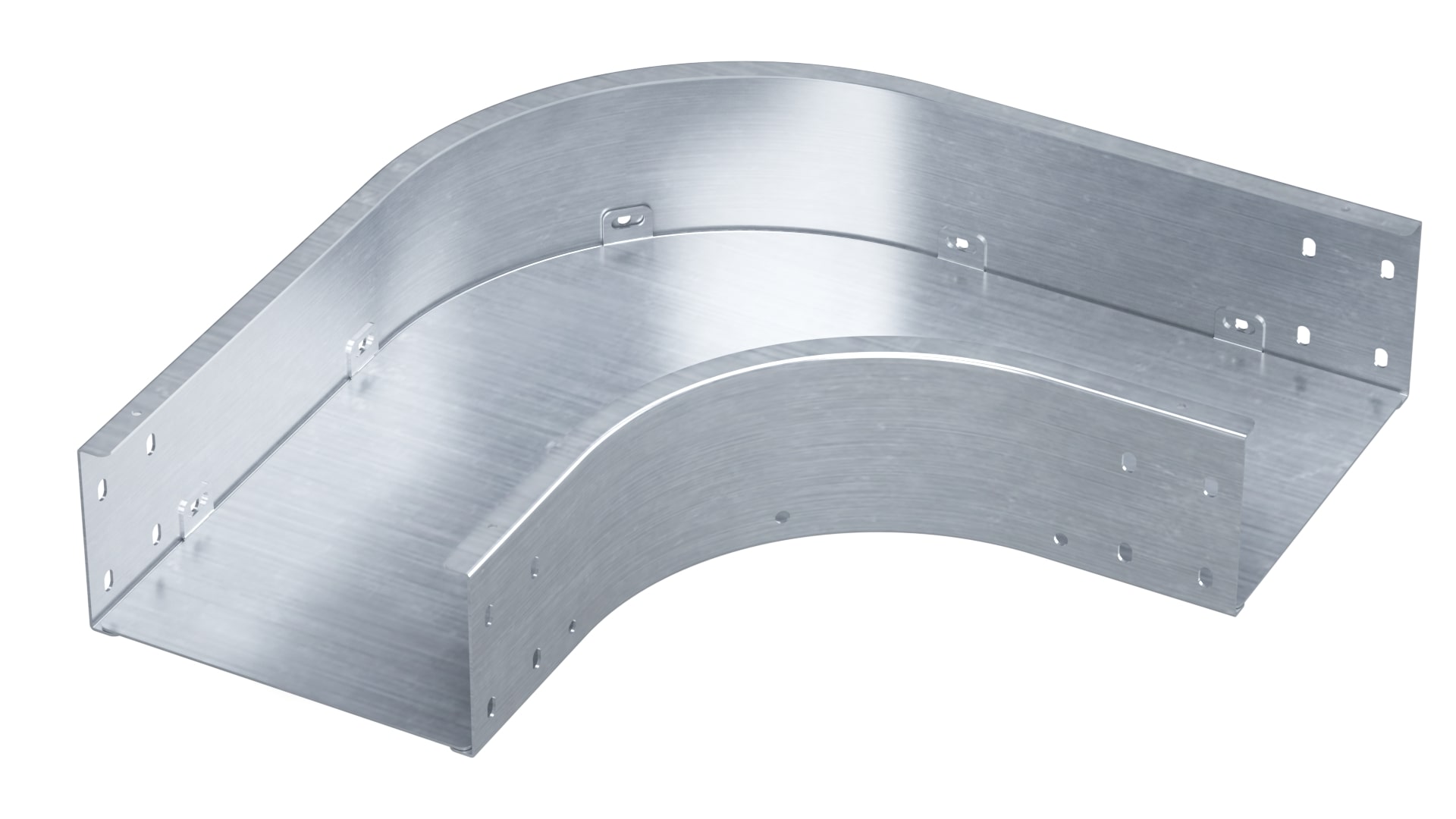

CPO 90 horizontal angle 100x300, 1,2 mm, HDZ included with fasteners (joint plates GTO, screws, nuts)
Code:
SDN1030KHDZ
CPO 90 horizontal angle 100x300, 1,2 mm, HDZ included with fasteners (joint plates GTO, screws, nuts)
Code:
SDN1030KHDZ
Colour | Light grey |
Model | Included connector |
Material thickness, mm | 1.2 |
Deflection (angle) | 90° |
Material quality | Steel |
Material | Steel |
Cable tray width, mm | 300 |
Cable tray height, mm | 100 |
Surface protection | Hot-dip galvanized |
Suitable for circuit integrity | Yes |
Change of direction | Horizontal |
With cover | No |
Bend model | Smooth bend |
Product type | System accessories |
Type of accessories | 90º Horizontal bend |
Height | 100 mm |
Thickness | 1.2 mm |
Material | Hot-dip galvanized |
Width | 300 mm |
