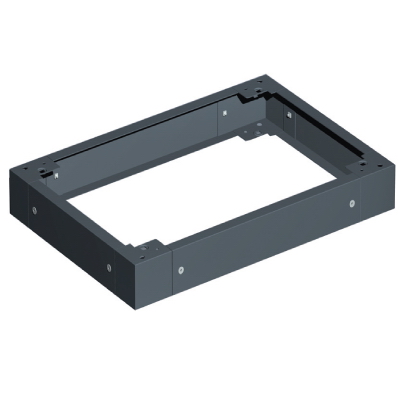

Socle of 1800 x 400 x 100 mm

Code: R5ZE1841
Socle of 1800 x 400 x 100 mm
Socle of 1800 x 400 x 100 mm

Socle of 1800 x 400 x 100 mm

Code: R5ZE1841
Colour Black
Width, mm 1800
Model Base complete
Height, mm 100
Depth, mm 400
Suitable for aeration/de-aeration Yes
Suitable for enclosure building width, mm 1800
Suitable for enclosure building depth, mm 400
Material Steel
Suitable for outdoor set-up Yes
Suitable for cable patch Yes
Enclosure type Floor
Material Painted steel
Product type Plinth
Drawings
Seria Name DWG (dynamic.) Eplan
Metal enclosures - "RAMblock"
Prefabricated outdoor metal cabinets CQE (dynamic blocks)
RAR
8.46 Mb
Metal enclosures - "RAMblock"
Prefabricated outdoor metal cabinets CQE
RAR
169.72 Mb
Metal enclosures - "RAMblock"
Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)
RAR
1.17 Mb
Certificates
Name Document
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
