Solid bottom for cabinets of CAE / CQE 1000 x 300 mm

Code: R5FUC103

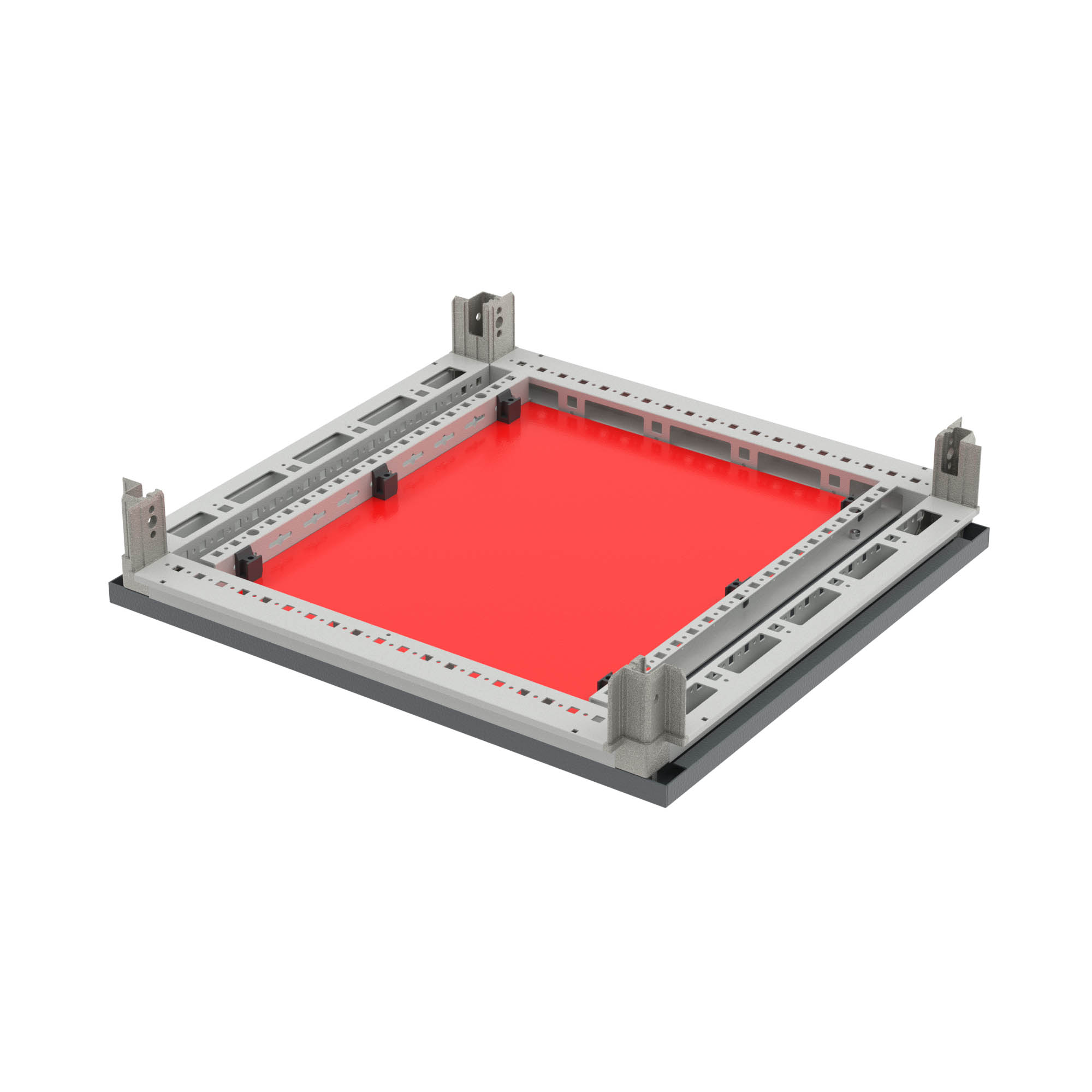

Solid bottom for cabinets of CAE / CQE 1000 x 300 mm

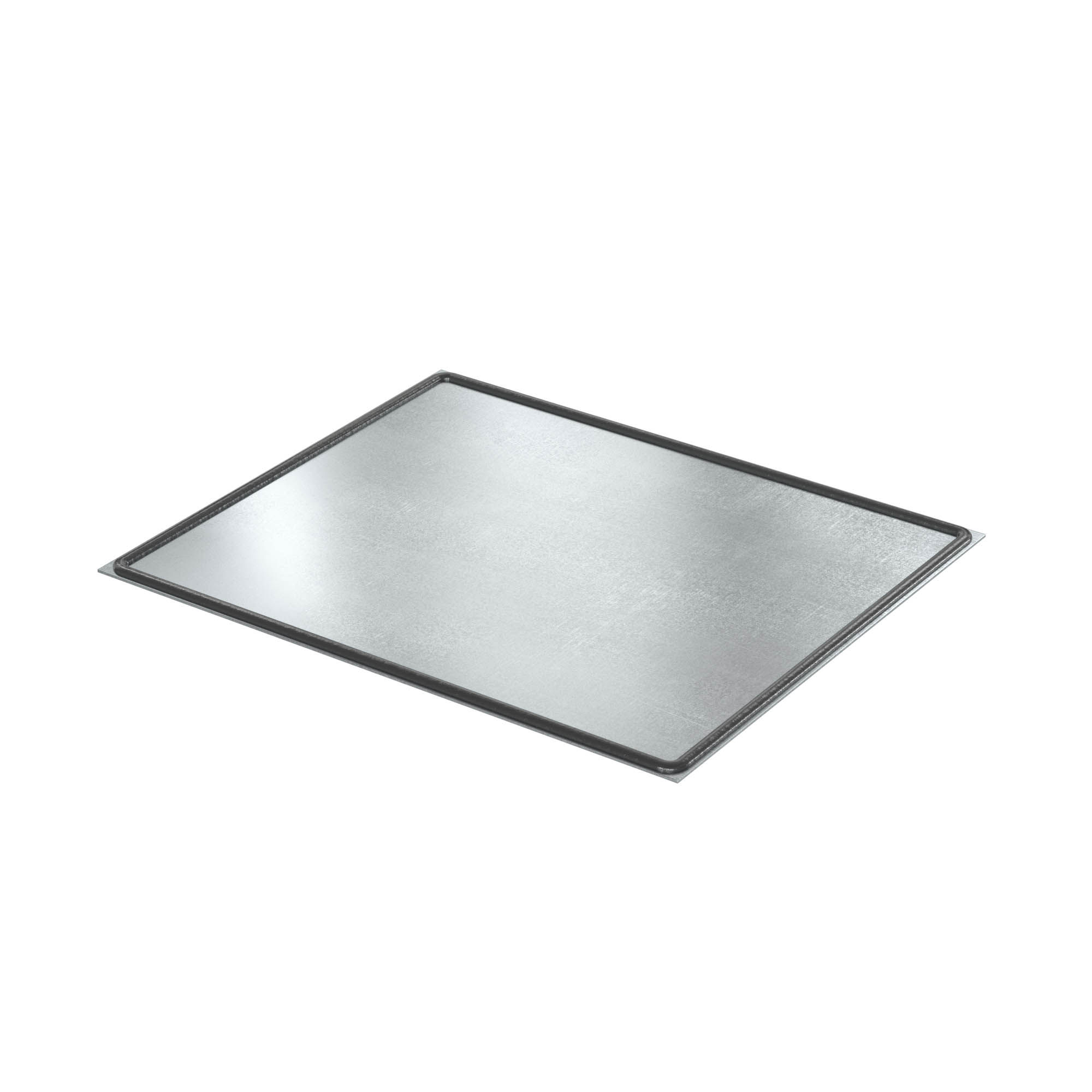

Solid bottom for cabinets of CAE / CQE 1000 x 300 mm
Colour Grey
Width, mm 1000
Model Base complete
Depth, mm 300
Suitable for aeration/de-aeration No
Suitable for enclosure building width, mm 1000
Suitable for enclosure building depth, mm 300
Material Steel
Suitable for outdoor set-up No
Suitable for cable patch No
Width, mm 1000
Thickness, mm 2
Depth, mm 300
