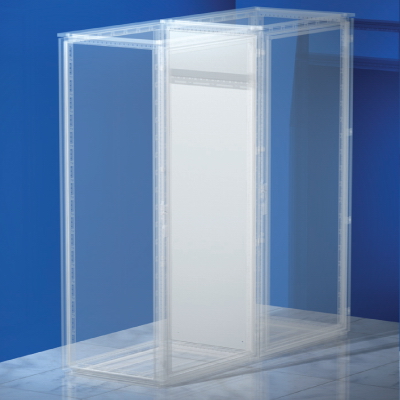

Vertical separator, complete, for cabinets of 1600 x 600 mm

Code: R5DVE1660
Vertical separator, complete, for cabinets of 1600 x 600 mm
Vertical separator, complete, for cabinets of 1600 x 600 mm
Colour Grey
Width, mm 540
Height, mm 1600
With cable entry No
Suitable for enclosure building width, mm 540
Suitable for enclosure building depth, mm 600
Material Steel
Number of height units 1
With lock No
Type of surface With powder coating
Color gray
Height, mm 1600
Thickness, mm 1.5
Depth, mm 600
Drawings
Seria Name Eplan DWG STEP DWG (dynamic blocks)
RAMblock - metal enclosures
Prefabricated outdoor metal cabinets CQE
RAR
169.72 MB
RAMblock - metal enclosures
Separator vertical, full, for cabinets 1600 x 600 mm
RAR
32.41 kB
RAR
21.00 kB
RAMblock - metal enclosures
Prefabricated outdoor metal cabinets CQE (dynamic blocks)
RAR
8.46 MB
RAMblock - metal enclosures
Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)
RAR
1.17 MB
Certificates
Name Document
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
