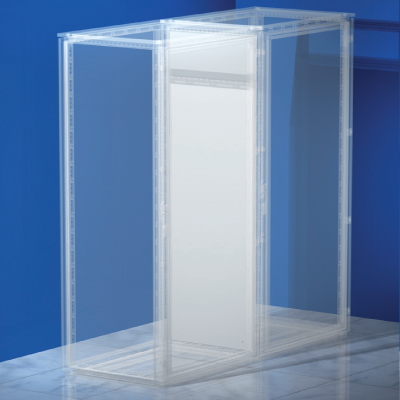

Vertical separator, complete, for cabinets of 1400 x 400 mm

Code: R5DVE1440
Vertical separator, complete, for cabinets of 1400 x 400 mm
Vertical separator, complete, for cabinets of 1400 x 400 mm
Colour Grey
Width, mm 340
Height, mm 1400
With cable entry No
Suitable for enclosure building width, mm 340
Suitable for enclosure building depth, mm 400
Material Steel
Number of height units 1
With lock No
Type of surface With powder coating
Color gray
Height, mm 1400
Thickness, mm 1.5
Depth, mm 400
Drawings
Seria Name Eplan DWG (dynamic blocks)
RAMblock - metal enclosures
Prefabricated outdoor metal cabinets CQE
RAR
169.72 MB
RAMblock - metal enclosures
Prefabricated outdoor metal cabinets CQE (dynamic blocks)
RAR
8.46 MB
RAMblock - metal enclosures
Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)
RAR
1.17 MB
Certificates
Name Document
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
