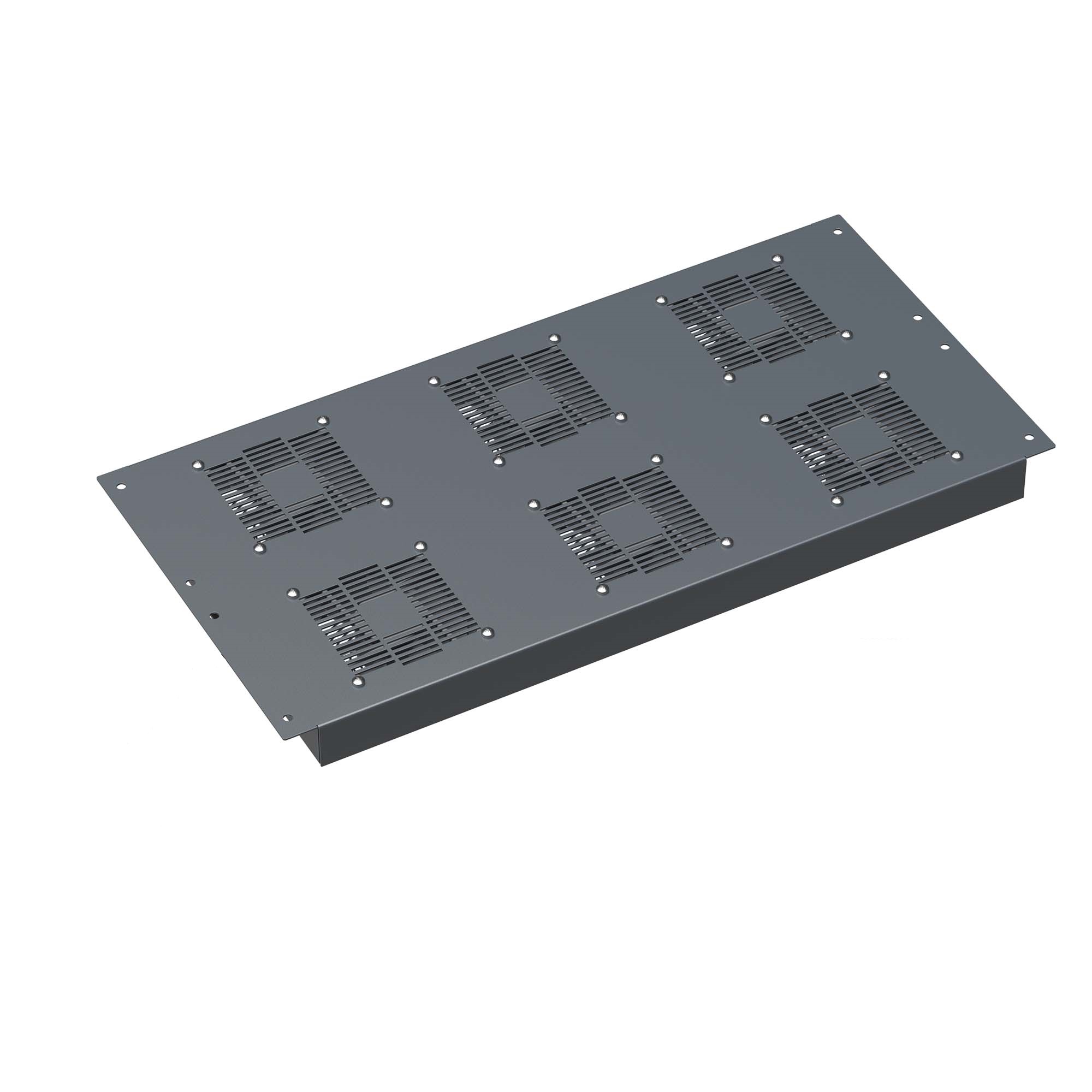

Ceiling module 6 fans without thermostat for IT CQE 800 mm wide, RAL7011
Code:
R5VSIT8006F
Code:
R5VSIT8006F
| Colour | Grey |
| Depth, mm | 160 |
| RAL-number | 7011 |
| Voltage type | AC |
| Suitable for 19 inch rack mounting | No |
| Number of fans | 6 |
| EMC-version | Yes |
| With protective cover | No |
| With filter | No |
| Rated power, W | 132 |
| Roof ventilator | Yes |
| Built as slide-in ventilator | No |
| Volume flow, freeblowing, m³/h | 960 |
| Air circulator | No |
| Wall build in | No |
| Operating voltage at AC 50 Hz, V | 210...240 |
| Mounting method | Screw mounting |
| Width, mm | 650 |
| Height, mm | 44 |
| Degree of protection (IP) | IP20 |
| Color | RAL7035 (light gray) |
| Product type | Ceiling fan module |
| Cabinet Width | 800 mm |
| Depth | 800 mm |
| Number of fans | 6 |
| Cabinet type | Floor |
