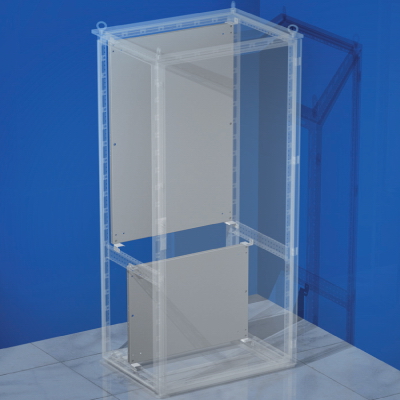

Mounting plate, partial, H = 1995mm, for cabinets CAE / CQE W = 600mm

Code: R5PCPE126
Mounting plate, partial, H = 1995mm, for cabinets CAE / CQE W = 600mm
Mounting plate, partial, H = 1995mm, for cabinets CAE / CQE W = 600mm
Width, mm 600
Height, mm 1200
Perforated No
Surface protection Zinc coated
Material Steel
Color gray
Raw material Metal
Height, mm 1200
Width, mm 600
Thickness, mm 2
