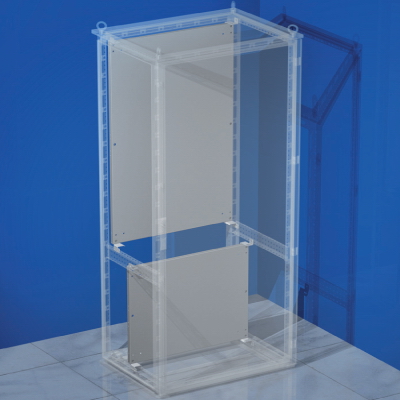

Mounting plate, partial, H = 1995mm, for cabinets CAE / CQE W = 1000mm

Code: R5PCPE1210
Mounting plate, partial, H = 1995mm, for cabinets CAE / CQE W = 1000mm
Mounting plate, partial, H = 1995mm, for cabinets CAE / CQE W = 1000mm
Width, mm 1000
Height, mm 1200
Perforated No
Surface protection Zinc coated
Material Steel
Color gray
Material Metal
Height, mm 1200
Width, mm 1000
Thickness, mm 2
