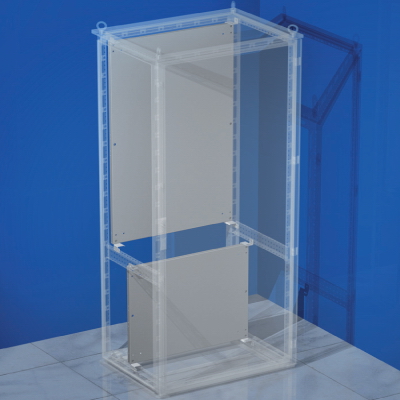

Mounting plate, partial, H = 995mm, for cabinets CAE / CQE W = 600mm

Code: R5PCPE106
Mounting plate, partial, H = 995mm, for cabinets CAE / CQE W = 600mm
Mounting plate, partial, H = 995mm, for cabinets CAE / CQE W = 600mm
Width, mm 1000
Height, mm 600
Perforated No
Surface protection Zinc coated
Material Steel
Color gray
Raw material Metal
Height, mm 600
Width, mm 1000
Thickness, mm 2
