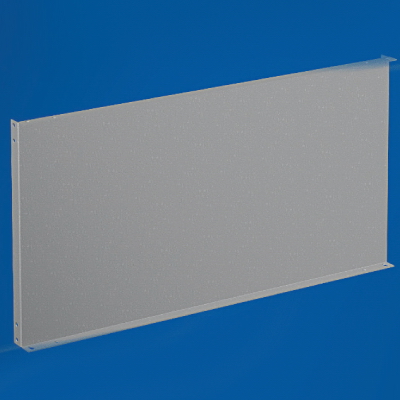

Mounting plate, sectional H = 900mm, for cabinets of CAE / CQE W = 800mm

Code: R5PCE8900
Mounting plate, sectional H = 900mm, for cabinets of CAE / CQE W = 800mm
Mounting plate, sectional H = 900mm, for cabinets of CAE / CQE W = 800mm
Width, mm 800
Height, mm 900
Perforated No
Surface protection Zinc coated
Material Steel
Color gray
Raw material Metal
Height, mm 900
Width, mm 800
Thickness, mm 2
Drawings
Seria Name Eplan DWG STEP DWG (dynamic blocks)
RAMblock - metal enclosures
Prefabricated outdoor metal cabinets CQE
RAR
169.72 MB
RAMblock - metal enclosures
Installation fee, section=900mm, for cabinets SAE/CQE W=800mm
RAR
43.25 kB
RAR
19.19 kB
RAMblock - metal enclosures
Prefabricated outdoor metal cabinets CQE (dynamic blocks)
RAR
8.46 MB
RAMblock - metal enclosures
Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)
RAR
1.17 MB
