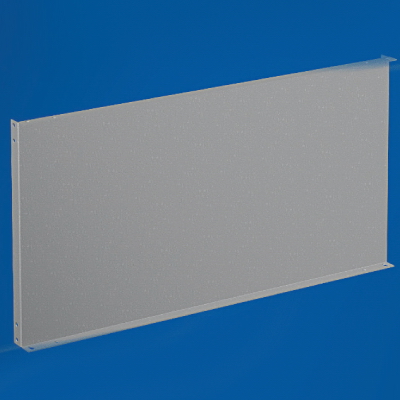

Mounting plate, sectional H = 300mm, for cabinets of CAE / CQE W = 600mm

Code: R5PCE6300
Mounting plate, sectional H = 300mm, for cabinets of CAE / CQE W = 600mm
Mounting plate, sectional H = 300mm, for cabinets of CAE / CQE W = 600mm
Width, mm 600
Height, mm 300
Perforated No
Surface protection Zinc coated
Material Steel
Color gray
Raw material Metal
Height, mm 300
Width, mm 600
Thickness, mm 2
Drawings
Seria Name Eplan DWG STEP DWG (dynamic blocks)
RAMblock - metal enclosures
