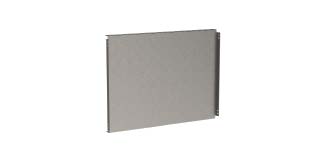

Mounting plate, sectional H = 500mm, for cabinets of CAE / CQE W = 1000mm

Code: R5PCE10500
Mounting plate, sectional H = 500mm, for cabinets of CAE / CQE W = 1000mm
Mounting plate, sectional H = 500mm, for cabinets of CAE / CQE W = 1000mm
Color gray
Material Steel
Height, mm 500
Width, mm 1000
Thickness, mm 2
Width, mm 1000
Height, mm 500
Perforated No
Surface protection Zinc coated
Material Steel
