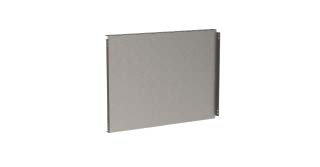

Mounting plate, sectional H = 300mm, for cabinets of CAE / CQE W = 1000mm

Code: R5PCE10300
Mounting plate, sectional H = 300mm, for cabinets of CAE / CQE W = 1000mm
Mounting plate, sectional H = 300mm, for cabinets of CAE / CQE W = 1000mm
Color gray
Material Steel
Height, mm 300
Width, mm 1000
Thickness, mm 2
Width, mm 1000
Height, mm 300
Perforated No
Surface protection Zinc coated
Material Steel
