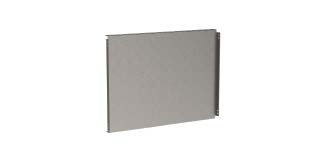

Mounting plate, sectional H = 200mm, for cabinets of CAE / CQE W = 1000mm

Code: R5PCE10200
Mounting plate, sectional H = 200mm, for cabinets of CAE / CQE W = 1000mm
Mounting plate, sectional H = 200mm, for cabinets of CAE / CQE W = 1000mm
Width, mm 1000
Height, mm 200
Perforated No
Surface protection Zinc coated
Material Steel
Color gray
Raw material Metal
Height, mm 200
Width, mm 1000
Thickness, mm 2
