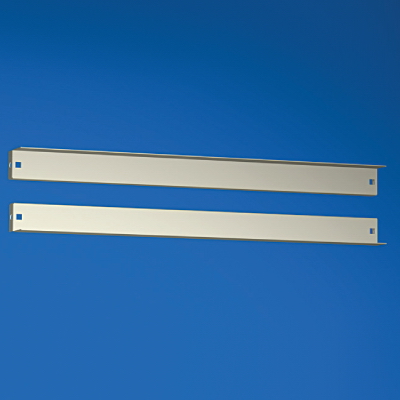

Overhead panel, B = 50mm for cabinets of CAE / CQE W = 600 mm, 2 pcs.

Code: R5PCD60
Overhead panel, B = 50mm for cabinets of CAE / CQE W = 600 mm, 2 pcs.
Overhead panel, B = 50mm for cabinets of CAE / CQE W = 600 mm, 2 pcs.
Colour Grey
Width, mm 600
Height, mm 50
With cable entry No
Suitable for enclosure building width, mm 600
Suitable for enclosure building depth, mm 21
Material Steel
Number of height units 1
With lock No
Type of surface With powder coating
Color gray
Height, mm 50
Width, mm 600
Thickness, mm 1.5
