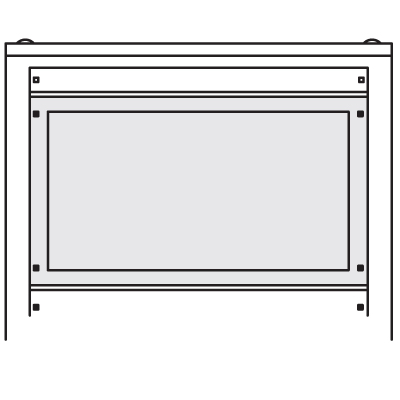

The sectional panel, in-depth, H = 400mm W =800mm

The sectional panel, in-depth, H = 400mm W =800mm

Code: R5PA8040

To ask a question

ETIM
?
Characteristics

Width, mm	800
Height, mm	400
Perforated	Нет

Surface protection	Galvanized
Material	Steel

Enclosure type	Floor
Material	Painted steel

Product type

Partitioning

Drawings

Seria	Name	DWG (dynamic.)	Eplan	DWG	STEP
Metal enclosures - "RAMblock"	Prefabricated outdoor metal cabinets CQE (dynamic blocks)	RAR 8.46 Mb
Metal enclosures - "RAMblock"	Prefabricated outdoor metal cabinets CQE		RAR 169.72 Mb
Metal enclosures - "RAMblock"	Panel, Lublin, H=400mm W=800mm			RAR 30.14 Kb	RAR 34.59 Kb
Metal enclosures - "RAMblock"	Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)	RAR 1.17 Mb

Certificates

Name	Document
RAM block - Exemption letter for accessories RAM block_1	PDF 742.54 kB
Test report on hinged welded cabinets ST_UHL1_1	PDF 196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"	PDF 5.99 MB
