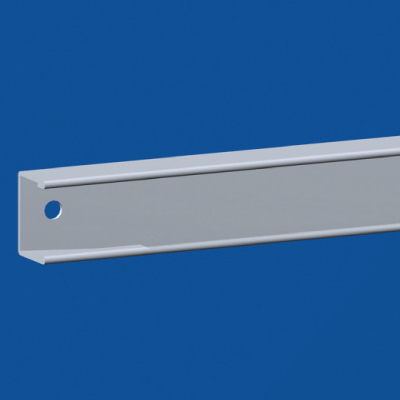

Vestibule to the inner sectional panels for cabinets of CAE / CQE W = 800mm

Vestibule to the inner sectional panels for cabinets of CAE / CQE W = 800mm

Code: R5BPE80

To ask a question

Width, mm	800
Model	Fastening parts/-set

Height, mm	20
Depth, mm	20

Enclosure type	Floor
Material	Galvanized steel

Product type

Partitioning

Drawings

Seria	Name	DWG (dynamic.)	Eplan	DWG	STEP
Metal enclosures - "RAMblock"	Prefabricated outdoor metal cabinets CQE (dynamic blocks)	RAR 8.46 Mb
Metal enclosures - "RAMblock"	Prefabricated outdoor metal cabinets CQE		RAR 169.72 Mb
Metal enclosures - "RAMblock"	Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)	RAR 1.17 Mb
Metal enclosures - "RAMblock"	In the section for the inner panel, for enclosure SAE/CQE W=800mm			RAR 18.26 Kb	RAR 9.41 Kb
