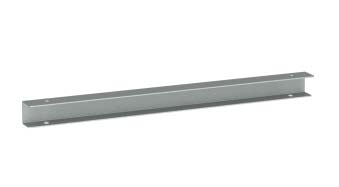

Vestibule to the inner sectional panels for cabinets of CAE / CQE W = 1000mm

Code: R5BPE100
Vestibule to the inner sectional panels for cabinets of CAE / CQE W = 1000mm
Vestibule to the inner sectional panels for cabinets of CAE / CQE W = 1000mm
Width, mm 1000
Model Fastening parts/-set
Height, mm 20
Depth, mm 20
Color gray
Thickness, mm 1,5
