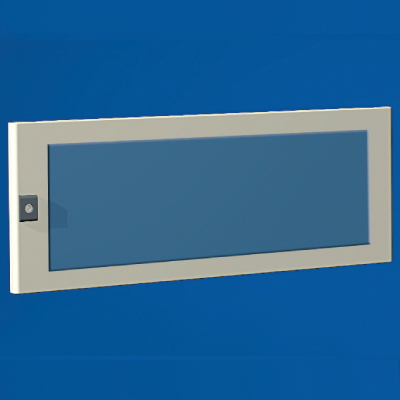

The sectional door, with a plastic window, H = 600mm, W = 600mm

Code: R5CPMTE6600
The sectional door, with a plastic window, H = 600mm, W = 600mm
The sectional door, with a plastic window, H = 600mm, W = 600mm
Material Steel
Type of surface With powder coating
Colour Grey
Width, mm 600
Height, mm 600
Depth, mm 2
Model Lock door
EMC-version No
Degree of protection (IP) Other
Version as glazed door Yes
Version as door for disconnecting switch interlocking No
Perforated No
Color gray
Height, mm 600
Width, mm 600
Thickness, mm 2
Drawings
Seria Name Eplan DWG STEP DWG (dynamic blocks)
RAMblock - metal enclosures
Prefabricated outdoor metal cabinets CQE
RAR
169.72 MB
RAMblock - metal enclosures
The door section, with plastic all right, H=600mm W=600mm
RAR
113.40 kB
RAR
349.27 kB
RAMblock - metal enclosures
Prefabricated outdoor metal cabinets CQE (dynamic blocks)
RAR
8.46 MB
RAMblock - metal enclosures
Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)
RAR
1.17 MB
Certificates
Name Document
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
