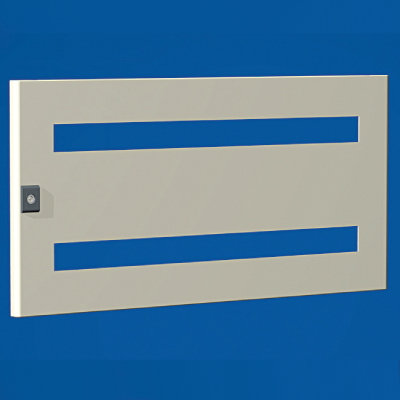

Door cell, for modules, 72 (2x36) modules, B = 400mm, W = 800mm

Code: R5CPME8401
Door cell, for modules, 72 (2x36) modules, B = 400mm, W = 800mm
Door cell, for modules, 72 (2x36) modules, B = 400mm, W = 800mm
Material Steel
Type of surface With powder coating
Colour Grey
Width, mm 800
Height, mm 400
Depth, mm 2
Model Lock door
EMC-version No
Degree of protection (IP) Other
Version as glazed door No
Version as door for disconnecting switch interlocking No
Perforated No
Color gray
Height, mm 400
Width, mm 800
Thickness, mm 2
