Code: R5CPME8201
Type of surfaceWith powder coating
Width, mm800
Height, mm200
Depth, mm2
Degree of protection (IP)Other
Version as glazed doorNo
Version as door for disconnecting switch interlockingNo

Enclosures and accessories
Seria Name Eplan STEP DWG DWG (dynamic blocks)
RAMblock - metal enclosures Prefabricated outdoor metal cabinets CQE Link

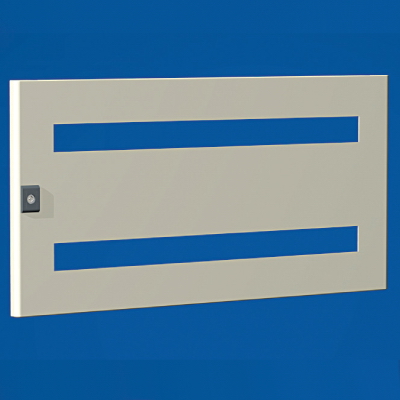

The door section to the module 36 (1x36) modules, H=200mm W=800mm Link Link
Prefabricated outdoor metal cabinets CQE (dynamic blocks) Link
Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks) Link
