Code: R5CPME10401
Type of surfaceWith powder coating
ColourGrey
Width, mm1000
Height, mm400
Depth, mm2
EMC-versionNo
Degree of protection (IP)Other
Version as glazed doorNo
Version as door for disconnecting switch interlockingNo
PerforatedNo

Enclosures and accessories
Seria Name Eplan STEP DWG DWG (dynamic blocks)
RAMblock - metal enclosures Prefabricated outdoor metal cabinets CQE Link

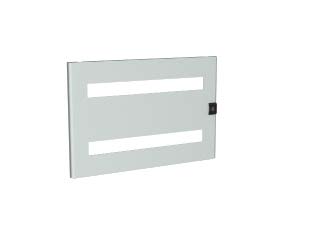

The door section for the module, 92 (2x46) module=400mm, W=1000mm Link Link
Prefabricated outdoor metal cabinets CQE (dynamic blocks) Link
Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks) Link
