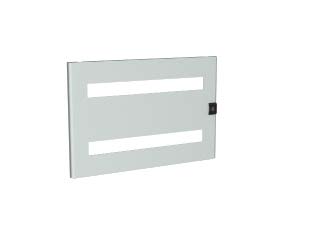

Door cell, for modules, 46 (1x46) modules, H = 1000mm, W = 200mm

Code: R5CPME10201
Door cell, for modules, 46 (1x46) modules, H = 1000mm, W = 200mm
Door cell, for modules, 46 (1x46) modules, H = 1000mm, W = 200mm
Material Steel
Type of surface With powder coating
Colour Grey
Width, mm 1000
Height, mm 200
Depth, mm 2
Model Lock door
EMC-version No
Degree of protection (IP) Other
Version as glazed door No
Version as door for disconnecting switch interlocking No
Perforated No
Color gray
Material Metal
Height, mm 200
Width, mm 1000
Thickness, mm 2
