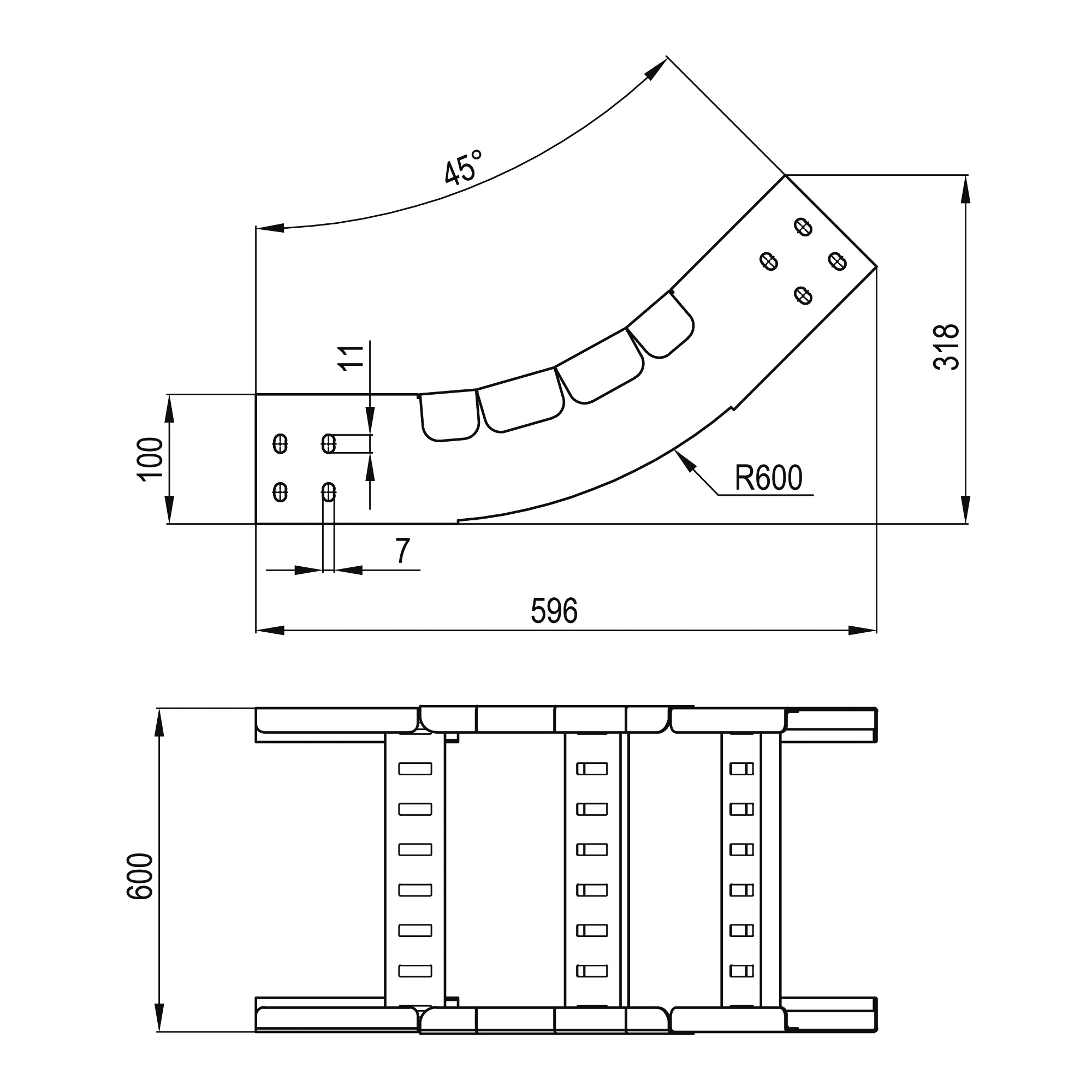

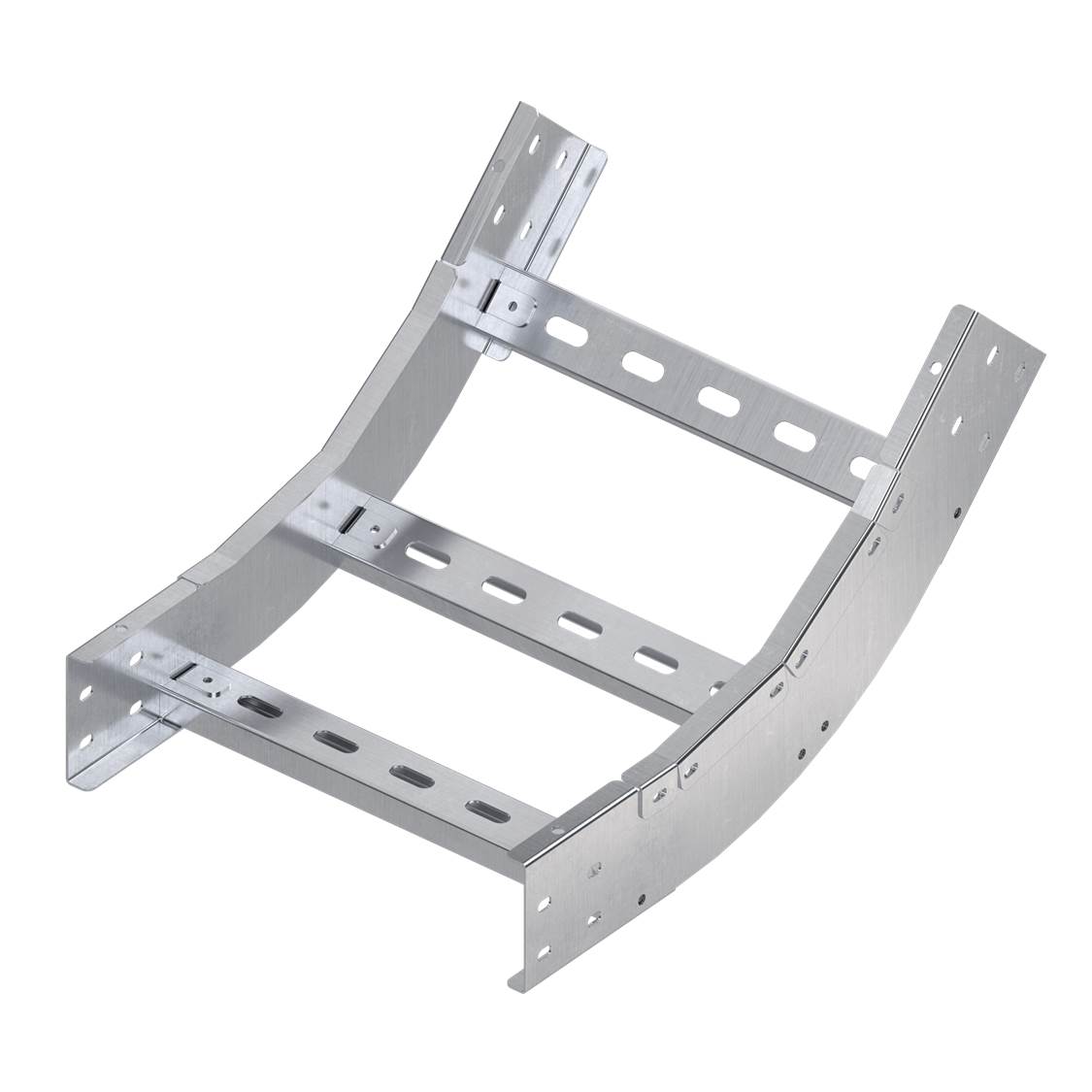

Internal vertical angle 45° 100х600, R600, included with fasteners (joint plates GTO, screws, nuts)
| Colour | Light grey |
| Deflection (angle) | 45° |
| Material | Steel |
| Inner radius, mm | 600 |
| Cable tray width, mm | 600 |
| Cable tray height, mm | 100 |
| Change of direction | Vertically rising |
| Model | Included connector |
| Surface protection | Sendzimir galvanized |
| Type of accessories | 45º vertical inner bend |
| Product type | System accessories |
| Height | 100 mm |
| Width | 600 mm |
| Material | Pre-galvanized steel |
Drawings
| Seria | Name | Autodesk Revit | STEP | SAT | DWG (dynamic blocks) | Intergraph | AVEVA |
|---|---|---|---|---|---|---|---|
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
Certificates
| Name | Document |
|---|---|
