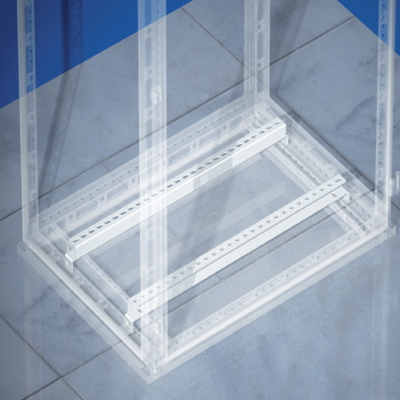

Rails reinforced for heavy equipment W = 800 mm, 2 pcs.

Code: R5TTE800
Rails reinforced for heavy equipment W = 800 mm, 2 pcs.
Rails reinforced for heavy equipment W = 800 mm, 2 pcs.
Mounting method Screw mounting
Model Systemic
Step less mounting Yes
Length, mm 800
Material Steel
Number of height units 1
Type of surface Zinc coated
Profile height busbar, mm 800
Color gray
Width, mm 800
Thickness, mm 1.5
Drawings
Seria Name Eplan DWG STEP DWG (dynamic blocks)
RAMblock - metal enclosures
Prefabricated outdoor metal cabinets CQE
RAR
169.72 MB
RAMblock - metal enclosures
Reiki Seal for heavy equipment W=800mm, 2pcs.
RAR
140.69 kB
RAR
41.28 kB
RAMblock - metal enclosures
Prefabricated outdoor metal cabinets CQE (dynamic blocks)
RAR
8.46 MB
RAMblock - metal enclosures
Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)
RAR
1.17 MB
Certificates
Name Document
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
