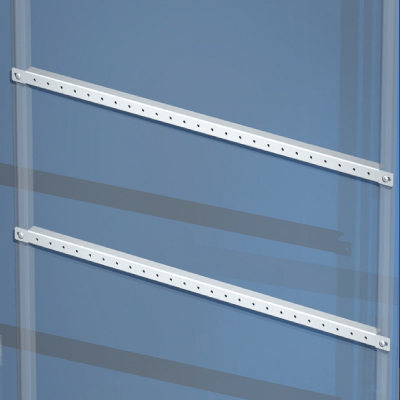

Rails horizontal door for cabinets of CQE W = 600 mm, 10 pcs.

Code: R5TPE60
Rails horizontal door for cabinets of CQE W = 600 mm, 10 pcs.
Rails horizontal door for cabinets of CQE W = 600 mm, 10 pcs.
Mounting method Screw mounting
Model Systemic
Step less mounting Yes
Length, mm 600
Material Steel
Number of height units 1
Type of surface Zinc coated
Profile height busbar, mm 600
Color gray
Width, mm 600
Thickness, mm 1.5
