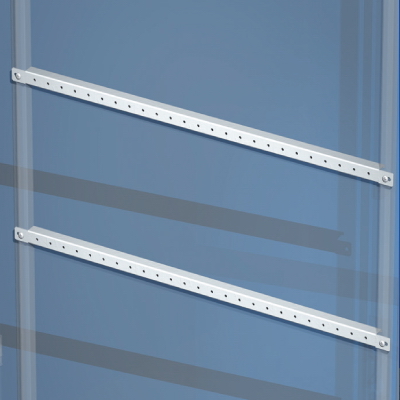

Rails horizontal door for cabinets of CQE W = 1000 mm, 10 pcs.

Code: R5TPE100
Mounting methodScrew mounting
Step less mountingYes
Length, mm1000
Number of height units1
Profile height busbar, mm1000

Enclosures and accessories
Seria Name Eplan STEP DWG DWG (dynamic blocks)
RAMblock - metal enclosures Prefabricated outdoor metal cabinets CQE Link
Horizontal slats, der, for cabinets CQE W=1000 mm, 10 PCs Link Link
Prefabricated outdoor metal cabinets CQE (dynamic blocks) Link
Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks) Link
