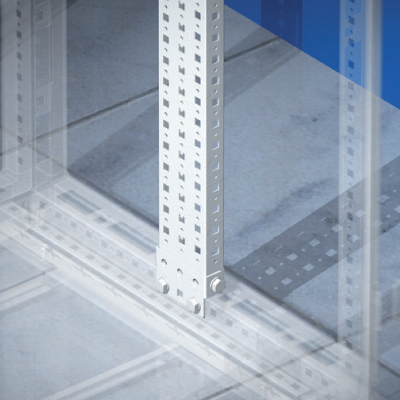

Rails vertical, broad, for cabinets of CQE B = 2000mm, 2pcs.

Code: R5PDV20
Rails vertical, broad, for cabinets of CQE B = 2000mm, 2pcs.
Rails vertical, broad, for cabinets of CQE B = 2000mm, 2pcs.

Rails vertical, broad, for cabinets of CQE B = 2000mm, 2pcs.

Code: R5PDV20
Mounting method Screw mounting
Model Systemic
Step less mounting Yes
Length, mm 2000
Material Steel
Number of height units 1
Surface finishing Galvanized
Profile height busbar, mm 2000
Enclosure type Floor
Material Galvanized steel
Product type Rail
