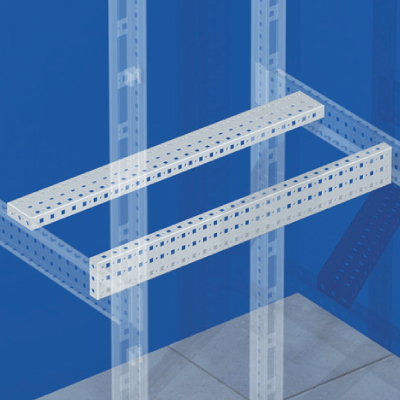

Rails transverse, broad, for cabinets of CQE W = 1600 mm, 4 pcs.

Code: R5PDF1600
Rails transverse, broad, for cabinets of CQE W = 1600 mm, 4 pcs.
Rails transverse, broad, for cabinets of CQE W = 1600 mm, 4 pcs.

Rails transverse, broad, for cabinets of CQE W = 1600 mm, 4 pcs.

Code: R5PDF1600
Mounting method Screw mounting
Model Systemic
Step less mounting Yes
Length, mm 1600
Material Steel
Number of height units 1
Surface finishing Galvanized
Profile height busbar, mm 1600
Enclosure type Floor
Material Galvanized steel
Product type Rail
Drawings
Seria Name DWG (dynamic.) Eplan DWG STEP
Metal enclosures - "RAMblock"
Prefabricated outdoor metal cabinets CQE (dynamic blocks)
RAR
8.46 Mb
Metal enclosures - "RAMblock"
Prefabricated outdoor metal cabinets CQE
RAR
169.72 Mb
Metal enclosures - "RAMblock"
Paper Strips, Siro, for cabinets CQE W=1600mm, 4pcs.
RAR
137.45 Kb
RAR
411.12 Kb
Metal enclosures - "RAMblock"
Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)
RAR
1.17 Mb
