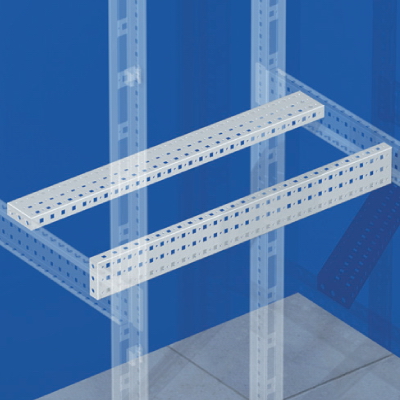

Rails transverse, broad, for cabinets of CQE W = 1000 mm, 4 pcs.

Code: R5PDF1000
Rails transverse, broad, for cabinets of CQE W = 1000 mm, 4 pcs.
Rails transverse, broad, for cabinets of CQE W = 1000 mm, 4 pcs.

Rails transverse, broad, for cabinets of CQE W = 1000 mm, 4 pcs.

Code: R5PDF1000
Mounting method Screw mounting
Model Systemic
Step less mounting Yes
Length, mm 1000
Material Steel
Number of height units 1
Surface finishing Galvanized
Profile height busbar, mm 1000
Enclosure type Floor
Material Galvanized steel
Product type Rail
