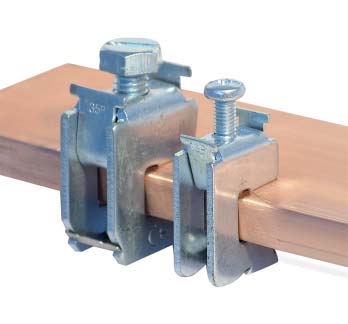

Cable' terminal for busbar 10 mm, cable 16-35 mm2

Code: R5BC1035
Cable' terminal for busbar 10 mm, cable 16-35 mm2
Cable' terminal for busbar 10 mm, cable 16-35 mm2
Suitable for Flat rail
Max. conductor cross section, mm² 35
Busbar width, mm 10
Busbar thickness, mm 10
Suitable for strip conductor connection Yes
Suitable for round conductor connection No
Profile area, sq.mm 16–35
Force of tightening, N/m 6–8
