Code: R5A07
Surface protectionGalvanic/electrolytic zinc pla
Material qualityOther
Length, mm12
Thread size metric (M..)4.8
Pitch thread, mm2.12
HardenedNo
Thread diameter, mm4.8
Self boringYes

Enclosures and accessories
Seria Name Eplan STEP DWG DWG (dynamic blocks)
RAMblock - metal enclosures Prefabricated outdoor metal cabinets CQE Link

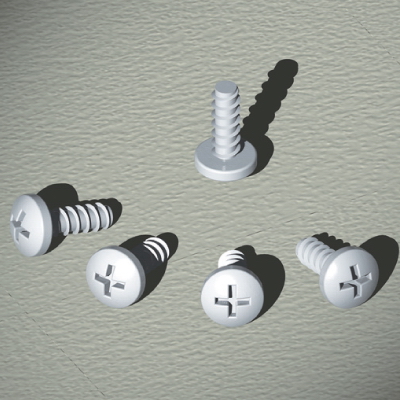

Went self tapping, M4.8x12, 50 PCs. Link Link
Prefabricated outdoor metal cabinets CQE (dynamic blocks) Link
Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks) Link
