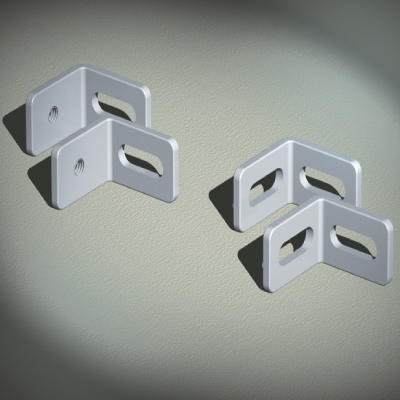

Mounting angles, cutout - M8 thread, 10 pcs.

Mounting angles, cutout - M8 thread, 10 pcs.

Code: R5A06

Mounting angles, cutout - M8 thread, 10 pcs.

Mounting angles, cutout - M8 thread, 10 pcs.

To ask a question

Width, mm	40
Model	Mounting angle bracket

Height, mm	40
Depth, mm	25

Raw material

Metal

Drawings

Seria	Name	Eplan	DWG	STEP	DWG (dynamic blocks)
RAMblock - metal enclosures	Prefabricated outdoor metal cabinets CQE	RAR 169.72 MB
RAMblock - metal enclosures	Crepe, Ugly, ware - thread M8 10 PCs.		RAR 106.53 kB	RAR 6.21 kB
RAMblock - metal enclosures	Prefabricated outdoor metal cabinets CQE (dynamic blocks)				RAR 8.46 MB
RAMblock - metal enclosures	Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)				RAR 1.17 MB

Certificates

Name	Document
RAM block - Exemption letter for accessories RAM block_1	PDF 742.54 kB
Test report on hinged welded cabinets ST_UHL1_1	PDF 196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"	PDF 5.99 MB
