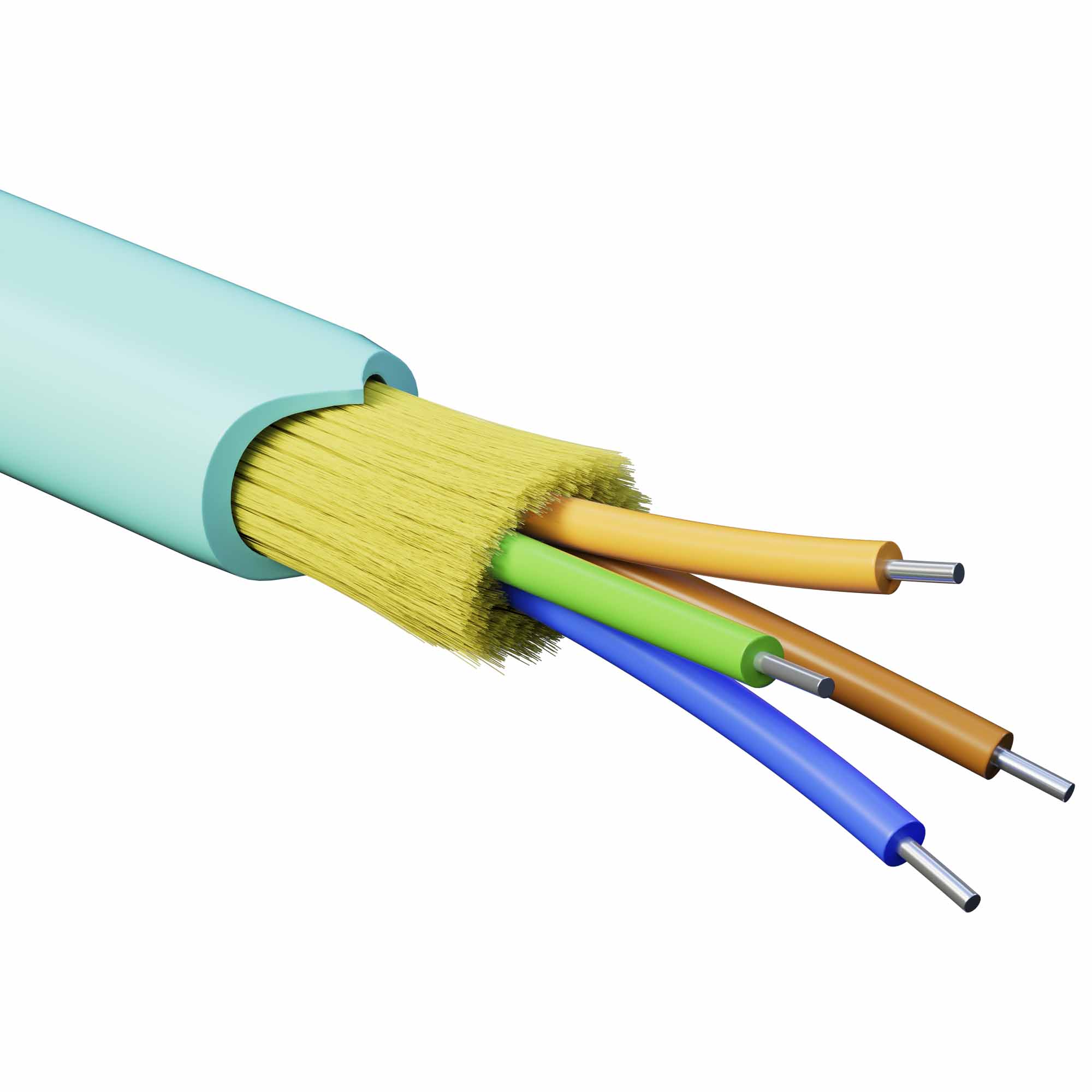

Fiber optic cable, distribution, aramid strength yarns, indoor, ng(A)-HF, 4 OF, category OM3 (G.651.1) tight buffer, 400N, reel 2000m
Code:
RNDT3C4AQ01
Code:
RNDT3C4AQ01
| Number of fibres | 4 |
| Type of tube | Tight |
| Number of fibres per tube | 4 |
| Fibre type | Multi mode 50/125 |
| Category | OM3 |
| With strain relief | No |
| Armouring | No |
| With rodent protection | No |
| Material outer sheath | Polyolefin |
| Colour outer sheath | Turquoise |
| Longitudinal water blocking cable | No |
| Radial water blocking cable | No |
| Reaction-to-fire class according to EN 13501-6 | None |
| Smoke development class according to EN 13501-6 | None |
| Euro class flaming droplets/particles according to EN 13501-6 | None |
| Euro class acidity according to EN 13501-6 | None |
| Cable metal free | Yes |
| Halogen free (according to EN 60754-1/2) | Yes |
| Oil resistant (according to EN 60811-404) | No |
| UV resistant | No |
| Min. permitted bending radius, stationary application/permanent installation, mm | 54 |
| Flame retardant | According to IEC/EN 60332-3-24 |
| Circuit integrity | No |
| Low smoke (according to BS EN 61034-2) | Yes |
| Resistant to chemicals | No |
| Outer diameter approx., mm | 5.4 |
| Suitable for underground installation | No |
| Blow in | No |
| Product type | Fiber optic cable |
| Fiber count | 4 |
| Fibre optic sort | Multimode |
| Fiber catgory | OM3 |
| Application | Indoor |
| For group installtion | Yes |
| Halogen free | Yes |
| Cable version according to GOST 31565-2012 | HF |
| Low toxic | No |
| Low smoke | Yes |
| With metal | No |
| Dielectrical | Yes |
| Armored with | Not armored |
| UV stabilized jacket | No |
| Outer jacked color | gray |
| Package length | 2000m |
