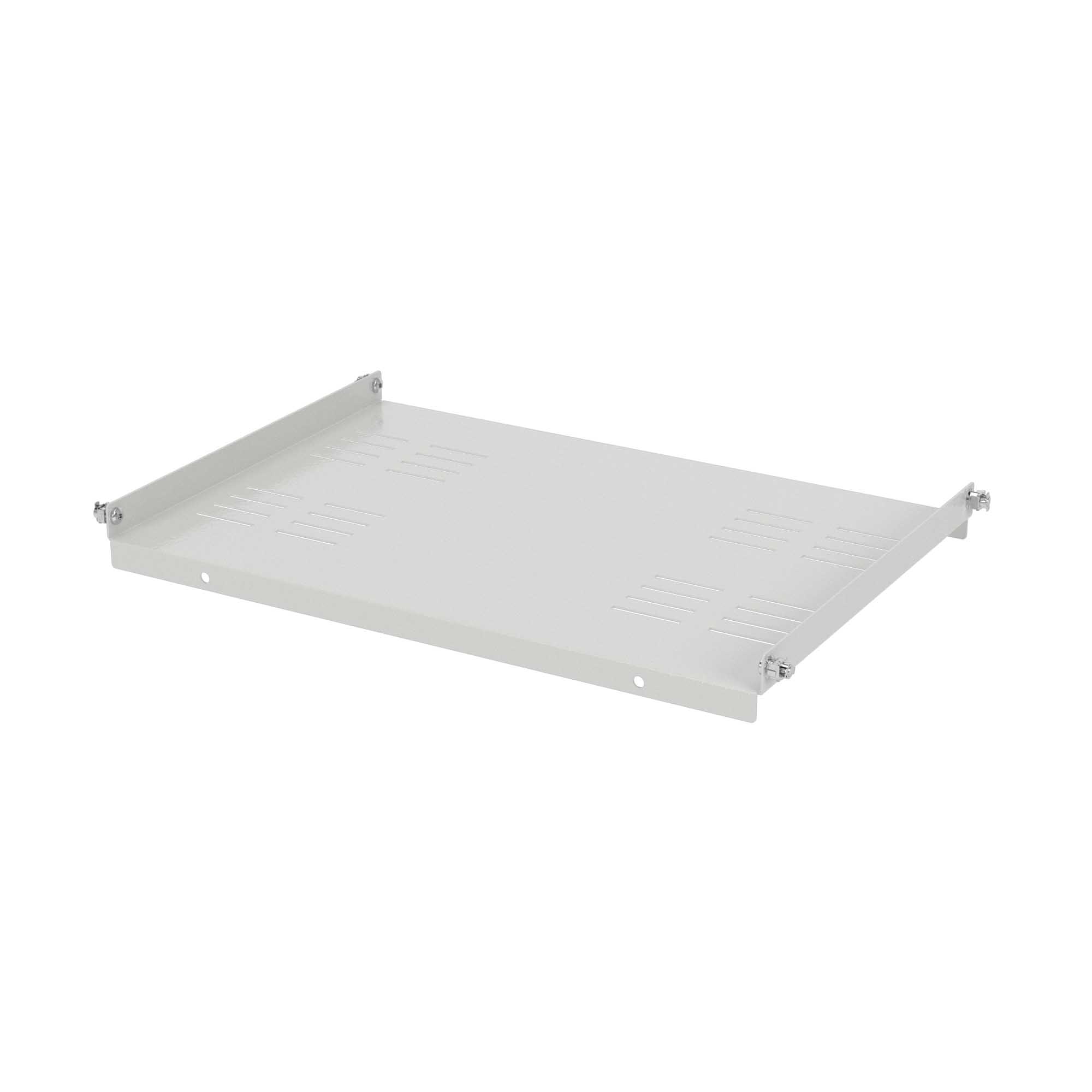

Fixed shelf, G=500 mm, for CQE cabinets with a width of 1000 mm

Code: R5NRF1050
Fixed shelf, G=500 mm, for CQE cabinets with a width of 1000 mm
Fixed shelf, G=500 mm, for CQE cabinets with a width of 1000 mm

Fixed shelf, G=500 mm, for CQE cabinets with a width of 1000 mm

Code: R5NRF1050
Colour Grey
Width, mm 1000
Model Shelf
Depth, mm 500
RAL-number 7035
Max. load capacity, kg 30
Suitable for enclosure building width, mm 1000
Suitable for enclosure building depth, mm 500
Material Metal
Drawings
Seria Name DWG (dynamic.) Eplan
Metal enclosures - "RAMblock"
Prefabricated outdoor metal cabinets CQE (dynamic blocks)
RAR
8.46 Mb
Metal enclosures - "RAMblock"
Prefabricated outdoor metal cabinets CQE
RAR
169.72 Mb
Metal enclosures - "RAMblock"
Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)
RAR
1.17 Mb
Certificates
Name Document
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
