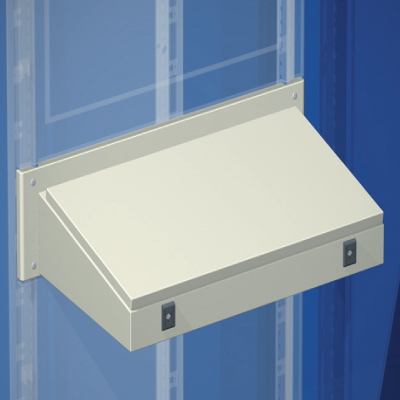

Console for cabinets of CQE 1200 mm (wide)

Console for cabinets of CQE 1200 mm (wide)

Code: R5LE1200

To ask a question

Colour	Grey
Width, mm	1200
Height, mm	170
Depth, mm	400
RAL-number	7035

Material	Steel
Degree of protection (IP)	Other
Type of surface	With powder coating
Component of the desk system	Console

Color	gray
Width, mm	1200

Thickness, mm

1.5

Drawings

Seria	Name	Eplan	DWG	STEP	DWG (dynamic blocks)
RAMblock - metal enclosures	Prefabricated outdoor metal cabinets CQE	RAR 169.72 MB
RAMblock - metal enclosures	Console cabinets CQE share of 1200 mm		RAR 206.71 kB	RAR 1.47 MB
RAMblock - metal enclosures	Prefabricated outdoor metal cabinets CQE (dynamic blocks)				RAR 8.46 MB
RAMblock - metal enclosures	Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)				RAR 1.17 MB

Certificates

Name	Document
RAM block - Exemption letter for enclosures RAM block_1	PDF 3.69 MB
RAM block - Exemption letter for accessories RAM block_1	PDF 742.54 kB
RAM block - Test report for assembled metal enclosures CQE on the seismic stability_2	PDF 844.06 kB
RAM block - Test report for assembled metal enclosures CQE on the vibration_1	PDF 805.39 kB
RAM block - Certificate of conformity to GOST R for RAM block	PDF 5.54 MB
RAM block - Test report for assembled metal enclosures CQE for accordance with GOST 15150 (UHL1)	PDF 2.11 MB
Test report on hinged welded cabinets ST_UHL1_1	PDF 196.35 kB
protocol_preliminary results of heat stability	PDF 187.18 kB
Test reports on the current 100kA_"RAM block"_11	PDF 280.85 kB
Test reports on the current 6300 Amps_ "RAM block"_1	PDF 294.38 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"	PDF 5.99 MB
Certificate or Ruassian maritime register for floor enclosures CQE	PDF 664.44 kB
Russian Maritime Register of Shipping_1	PDF 8.60 MB
Certificate of conformity to GOST 14254-2015 for the Floor-mounted universal assembled enclosures series CQE (IP55, IP65)	PDF 419.92 kB
