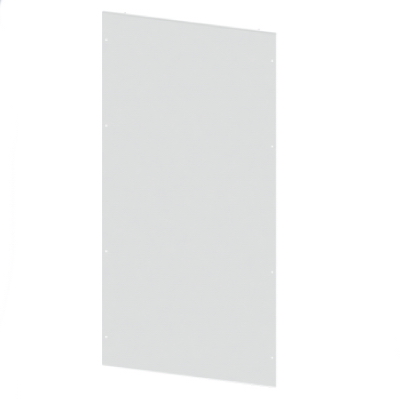

Back panel for cabinets of CAE / CQE, 1200 x 1000 mm

Code: R5CRE12100
Back panel for cabinets of CAE / CQE, 1200 x 1000 mm
Back panel for cabinets of CAE / CQE, 1200 x 1000 mm
Material Steel
Type of surface With powder coating
RAL-number 7035
Colour Grey
Width, mm 1000
Height, mm 1200
With lock No
With cable entry No
Suitable as rear panel Yes
Suitable for enclosure building width, mm 1000
Number of height units 1
Suitable as side panel No
Color gray
Raw material Metal
Height, mm 1200
Width, mm 1000
Thickness, mm 1,5
