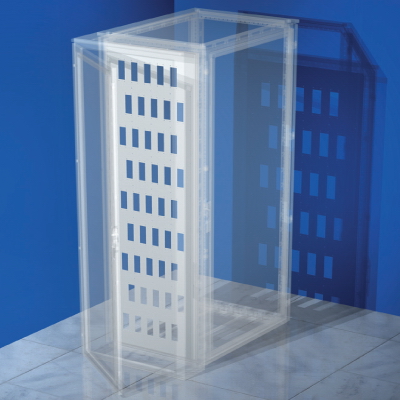

Panel for industrial connectors, 36 (4 x 9) slots, 2000 x 500mm

Panel for industrial connectors, 36 (4 x 9) slots, 2000 x 500mm

Code: R5PCDE2050

To ask a question

Width, mm	500
Height, mm	2000
Perforated	Yes

Surface protection	Zinc coated
Material	Steel

Height, mm	2000
Width, mm	500

Thickness, mm

2

Drawings

Seria	Name	Eplan	DWG	STEP	DWG (dynamic blocks)
RAMblock - metal enclosures	Prefabricated outdoor metal cabinets CQE	RAR 169.72 MB
RAMblock - metal enclosures	Panel under industrial connectors 36 (4 x 9) connectors, 2000 x 500mm		RAR 56.51 kB	RAR 133.89 kB
RAMblock - metal enclosures	Prefabricated outdoor metal cabinets CQE (dynamic blocks)				RAR 8.46 MB
RAMblock - metal enclosures	Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)				RAR 1.17 MB

Certificates

Name	Document
RAM block - Exemption letter for accessories RAM block_1	PDF 742.54 kB
Test report on hinged welded cabinets ST_UHL1_1	PDF 196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"	PDF 5.99 MB
