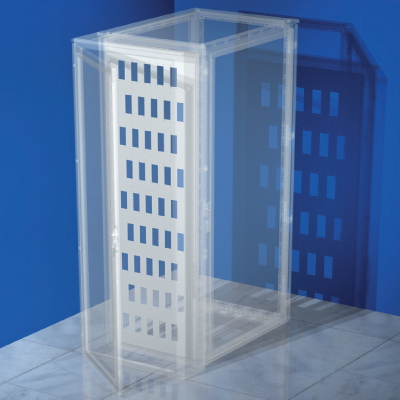

Panel for industrial connectors, 24 (3 x 8) slots, 1800 x 400mm

Panel for industrial connectors, 24 (3 x 8) slots, 1800 x 400mm

Code: R5PCDE1840

To ask a question

Width, mm	400
Height, mm	1800
Perforated	Yes

Surface protection	Zinc coated
Material	Steel

Height, mm	1800
Width, mm	400

Thickness, mm

2

Drawings

Seria	Name	Eplan	DWG	STEP	DWG (dynamic blocks)
RAMblock - metal enclosures	Prefabricated outdoor metal cabinets CQE	RAR 169.72 MB
RAMblock - metal enclosures	Panel for industrial connectors, a 24 (3 x 8) connectors, 1800 x 400mm		RAR 90.82 kB	RAR 108.87 kB
RAMblock - metal enclosures	Prefabricated outdoor metal cabinets CQE (dynamic blocks)				RAR 8.46 MB
RAMblock - metal enclosures	Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)				RAR 1.17 MB

Certificates

Name	Document
RAM block - Exemption letter for accessories RAM block_1	PDF 742.54 kB
Test report on hinged welded cabinets ST_UHL1_1	PDF 196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"	PDF 5.99 MB
