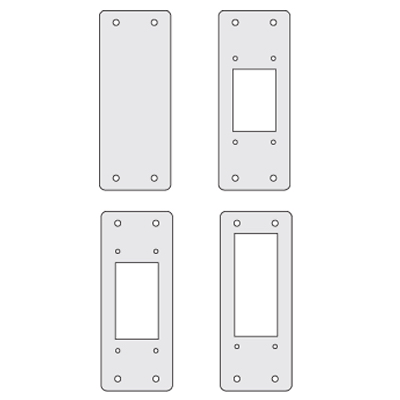

Plugs for prom. Panels, Adaptor 24 / 16, 4 pcs.

Plugs for prom. Panels, Adaptor 24 / 16, 4 pcs.

Code: R5AD2416

To ask a question

Number of positions	1
With PE-connection	No

Material assembly frame	Steel
Inflammability class of insulation material acc. with UL94	Other

Thickness, mm

2

Drawings

Seria	Name	Eplan	DWG	STEP	DWG (dynamic blocks)
RAMblock - metal enclosures	Prefabricated outdoor metal cabinets CQE	RAR 169.72 MB
RAMblock - metal enclosures	Plugs for prom. panel located 24/16, 4pcs.		RAR 20.19 kB	RAR 7.06 kB
RAMblock - metal enclosures	Prefabricated outdoor metal cabinets CQE (dynamic blocks)				RAR 8.46 MB
RAMblock - metal enclosures	Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)				RAR 1.17 MB
