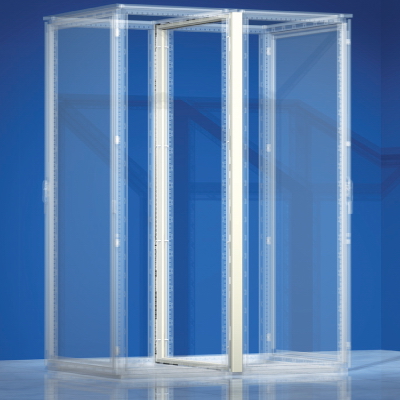

Set to join cabinet backs, 2000 x 800 mm

Set to join cabinet backs, 2000 x 800 mm

Code: R5KFRE2080

To ask a question

ETIM
?
Characteristics

Colour	Grey
Width, mm	800
Model	Components for lace up technique

Height, mm	2000
Depth, mm	51
Material	Steel

Enclosure type	Floor
Material	Painted steel

Product type

Enclosures joining

Drawings

Seria	Name	DWG	STEP	DWG (dynamic.)	Eplan
Metal enclosures - "RAMblock"	Set for obedience cabinets backs, 2000 x 800 mm	RAR 592.94 Kb	RAR 1.83 Mb
Metal enclosures - "RAMblock"	Prefabricated outdoor metal cabinets CQE (dynamic blocks)			RAR 8.46 Mb
Metal enclosures - "RAMblock"	Prefabricated outdoor metal cabinets CQE				RAR 169.72 Mb
Metal enclosures - "RAMblock"	Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)			RAR 1.17 Mb

Certificates

Name	Document
RAM block - Exemption letter for accessories RAM block_1	PDF 742.54 kB
Test report on hinged welded cabinets ST_UHL1_1	PDF 196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"	PDF 5.99 MB
