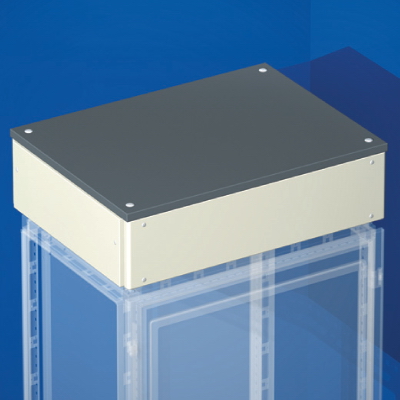

Plate for the separation of the cabinet and module R5SCE, 400 x 500 mm

Code: R5PDS45
Plate for the separation of the cabinet and module R5SCE, 400 x 500 mm
Plate for the separation of the cabinet and module R5SCE, 400 x 500 mm
  • To ask a question
Colour Grey
Width, mm 400
Height, mm 200
With cable entry Нет
Suitable for enclosure building width, mm 400
Suitable for enclosure building depth, mm 500
Material Steel
Number of height units 1
With lock Нет
Surface finishing Powder coating
Enclosure type Floor
Material Galvanized steel
Product type Partitioning
Drawings
Seria Name Eplan DWG (dynamic blocks)
Metal enclosures - "RAMblock"
Prefabricated outdoor metal cabinets CQE
RAR
169.72 MB
Metal enclosures - "RAMblock"
Prefabricated outdoor metal cabinets CQE (dynamic blocks)
RAR
8.46 MB
Metal enclosures - "RAMblock"
Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)
RAR
1.17 MB
Certificates
Name Document
RAM block - Exemption letter for enclosures RAM block_1
PDF
3.69 MB
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
RAM block - Test report for welded boxes CE/CDE on the seismic stability_1
PDF
128.88 kB
RAM block - Test report for welded boxes CE/CDE on the vibration_1
PDF
125.50 kB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
